Name: SC UPC Fiber Patch Cord , Fiber Jumper Cables SM 3.0mm PVC Jacket OEM
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: TW-PC-3M-3.0MM
Price: 1.40 USD
Availability: InStock

SC UPC Fiber Patch Cord , Fiber Jumper Cables SM 3.0mm PVC Jacket OEM

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Types Of Connectors: FC, SC, ST, LC, MU, MTRJ Etc

Polish: PC, UPC And APC

Material: PVC/LSZH/TPU

Fiber: SM/MM

Cord Type: Simplex ,Duplex

Length: 1m,3m,5m Or Customized

Highlight:

fiber optic patch cable

pigtail fiber optic cable

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE,ROHS,REACH

Model Number: TW-PC-3M-3.0MM

Payment & Shipping Terms

Packaging Details: 1PC/PE BAG

Delivery Time: 15 Working Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000PCS PER DAY

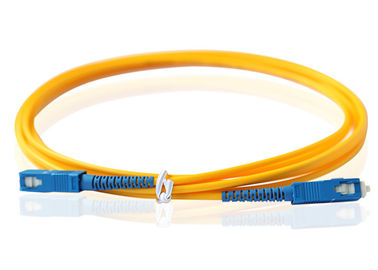

Gallery

SC UPC Fiber Patch Cord , Fiber Jumper Cables SM 3.0mm PVC Jacket OEM

Product Description

Optical Fiber Patch Cord

1. Description

Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. BD patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

2. Features

a. Low Insertion Loss

b. High Return Loss

c. Good Repeatability

d. Good Exchangeability

e. High Temperature Stability

3. Applications

a. Optical Fiber Communication Systems

b. Optic-fiber Data Communications

c. Optic-fiber Data Communications

d. Optic-fiber Access Networks

e. LAN Optic-fiber Sensors

4. Parameters

Mode	Single mode		Multi-mode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:9/125-G652D 9/125-G657
Fiber type	Multi-mode: 50/125-OM2 62.5/125-OM1 50/125-OM3
Fiber	Corning,China Fiber,other
Connector	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket	PVC,LSZH,OFNR,OFNP
length(M)	0.5m,1m,3M,5m,10m,20m,200m or other

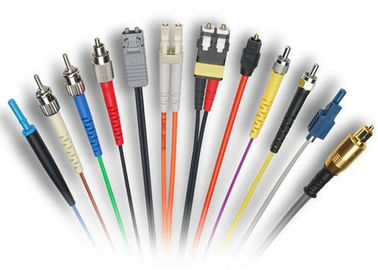

5. Appearance
