Name: 12 Core FTTH Fiber Optic Distribution Box Round Wire Material Shape Design
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: ABS 48 Core Fiber Optic Distribution Box, FTTH Box
Price: 184.02 USD
Availability: InStock

12 Core FTTH Fiber Optic Distribution Box Round Wire Material Shape Design

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Counts: 2-144 Fiber

Brand Name: OEM

Material: ABS/PC

Application: Communication, Medicine, Fiber Optic Equipments

Connection Structure: Optical Fiber

Material Shape: Round Wire

Certification: RoHS, SGS, ISO

Packaging Details: 100PCS/CTN

Highlight:

optical distribution box

ftth distribution box

Basic Infomation

Place of Origin: Dong Guan city China

Brand Name: TW

Certification: RoHS, SGS, ISO

Model Number: ABS 48 Core Fiber Optic Distribution Box, FTTH Box

Payment & Shipping Terms

Packaging Details: carton box or customized

Delivery Time: 5working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000/week

Gallery

12 Core FTTH Fiber Optic Distribution Box Round Wire Material Shape Design

Product Description

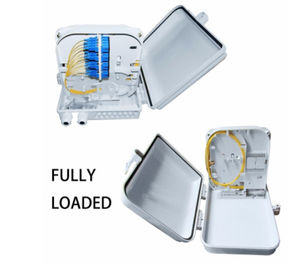

Waterproof ABS 12 core fiber optic distribution Box FTTH Box

Product Description

This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable.

The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor.

FDB-2H fiber optical information faceplate

Performance index

Item	Technical Data
Application	3.0*2.0 mm drop cable or indoor cable
Fiber diameter	125μm (652 & 657)
Tight cladding diameter	250μm & 900μm
Mode of application	Single mode & Duplex mode
Tensile strength	>50N
End-use temperature	-40~+85ºC
Adaptor	SC & FC
Insertion loss	≤0.2db(1310nm & 1550nm)
Output	2

Environmental reguirement
Working temprature : -40ºC~+85ºC
Relative humidity : ≤85% (+30ºC)
Atmospheric pressure : 70Kpa~106Kpa

Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times

Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);

IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,

no flashover; U≥3000V
