Armored FC, SC, LC, ST, MTRJ fiber optic patch cord for optical communication system
Quick Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: TW-SCIE or OEM
ConnectorS : SC,LC,FC,ST,E2000,MTRJ,MU,MPO etc...
Optical Fiber Type: G652D,G652D, 50/125 62.5/125 G657A1 G657A2
Ferrule end Face: UPC,APC
Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 0.25mm
Cable Length:1M, 3M, 10M, customized
Cable Jacket: PVC, LSZH
CORE: Simplex, Duplex
Descriptions:

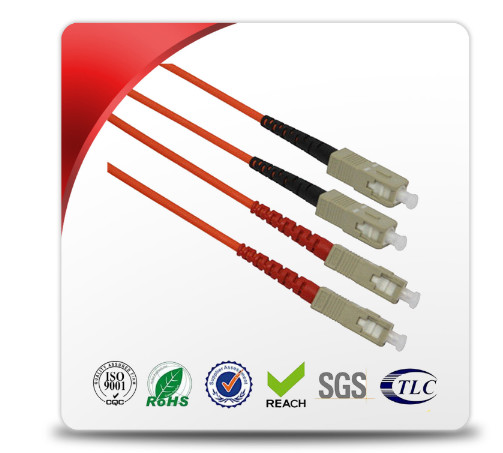

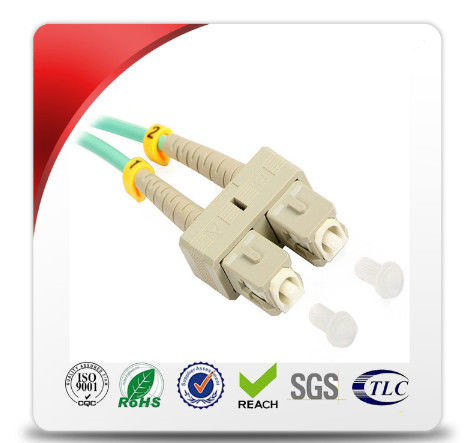

Low insertion,high return loss, SC-SC-SM-DX fiber optic patch cord is a square,snap-in connectors latches with a simple push-pull motion and is keyed.
Application:
Usage: Testing equipment,FTTX+LAN,Optical fiber CATV,Optical communication system and
Telecommunications.
Specifications:
| Insertion losses |
G652D |
dB
|
≤ 0.2 |
| Return losses |
G652D |
≥ 60 |
| Attenuation |
dB/Km |
0,3 |
| Connectors |
type |
SC/APC |
| Fiber |
Monomode (SM) G652 |
| Outer sheath |
material |
LSZH PVC |
| Ø mm |
3 |
| color |
Orange |
| Available jumper lengths |
m |
10 |
| Cable |
First End |
Second End |
Fiber Type |
Pigtail Dim.(mm) |
Fan Out Length |
Jacket Type |
Length |
| 1=1Fiber |
FU(A)=FC/UPC(APC) |
FU(A)=FC/UPC(APC) |
H=Hi 780 |
09=Φ0.9 |
05=50cm |
E=PE |
05=50cm |
| 2=2Fiber |
SU(A)=SC/UPC(APC) |
SU(A)=SC/UPC(APC) |
F=Flex 1060 |
2=Φ2 mm |
10=100cm |
C=PVC |
10=100cm |
| 4=4Fiber |
|
|
D=G652D |
3=Φ3mm |
|
H=LSZH |
|
| |
LU(A)=LC/UPC(APC) |
LU(A)=LC/UPC(APC) |
A=G657A |
|
20=200cm |
A=Armored |
20=200cm |
| R=Ribbon |
X=Customization |
B=G657B |
X=Customization |
| |
|
B=Bow
-type |
|
| |
|
OM1=62.5/125 |
|
| |
|
OM2=50/125 |
|
| |
|
OM3=50/125 |
|
| |
|
OM4=50/125 |
|
Order Information:
|
Connector
|
Fiber Core
|
Cable Diameter
|
Fiber Type
|
Polishing
|
Cable Jacket
|
Cable Color
|
Fiber Length
|
LC
SC
FC
ST
D4
MU
DIN
SMA
MPO
MTRJ
E2000 |
Simplex
Duplex |
0.9mm
2.0mm
3.0mm |
SM:9/125um
MM:50/125um MM:62.5/125um
OM3 |
PC
UPC
APC |
PVC
LSZH |
Yellow
Orange
Aqua
others |
1M
2M
3M
10M
20M
30M
|
Availabilities:
--Full specifications: FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, Etc.
--Simplex and Duplex assemblies available
--Singlemode and multimode available
--PC, UPC and APC polishing available
--Hybrid patch cords are available upon request
--Fan-out available (Ribbon type / bundle type)
--Pigtail available
--Loopback available
--Customized lengths upon request
--100% TESTED before shipping
Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2. To develop advanced technology ,we have built a stable relationship with scientific research center for
fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products
enjoy great reputation for their advanced and precise quality worldwide.
Service Advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management
standardISO9001:2008.
2.We have not received complaints from customers on product quality right now.
