Home /Products/Optical Fibre Cable Joint Closure/Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price

Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price

Negotiable
MOQ
Negotiable
Price
Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiber Optic Splice Closure
Cable Out Of The Tube Configuration: Up To Four Out Of The Tube Fiber Optic Cable
Cores: Bunchy 96cores,ribbon 96-144cores
Color: Black
Material: PC+ABS
Protection Class: Mechanical Seal
Splice Tray: Max 4 Pcs, 24 Cores Each
Scope: Pole, Buried, Manholes, Wall
Ports Diameter(mm): 16~22mm
Fiber Radius Of Curvature(mm): 30
Dielectric Strength(kv): 1.5
Atmospheric Pressure(Kpa): 70~1106
Tensile Strength(N): >1000
Anti-stress: >2000N/ 10cm2 Stress,Time 1min
Compressive Strength: 15KV(DC)/1min. No Breakdown.No Flashover
Insulation Resistance: >2X10MΩ/500V(DC)
Ambient Temperature(°C): -40~+60℃
Highlight:

fiber optic enclosure

,

cable joint enclosure
Basic Infomation
Place of Origin: dong guan china
Brand Name: TW
Certification: RoHS, SGS, ISO
Model Number: 2 in 2 out Horizontal Type 144 Core Fiber Optic Closure
Payment & Shipping Terms
Packaging Details: carton packing
Delivery Time: one week
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 10000/ month
Product Description

Optical Fiber Cable Joint Closure

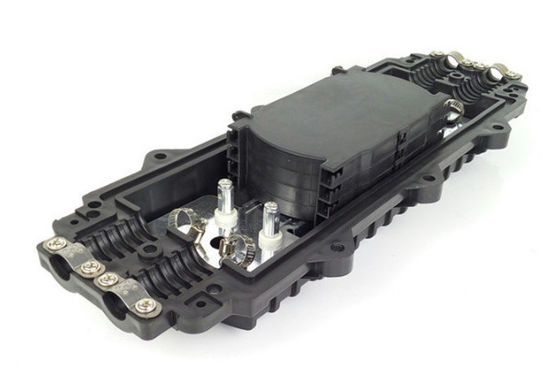

Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price 0

General

Fiber optic splice

closure is used for protective connection of two or multiple optical cable and optic fiber cable distribution. It is one of commonly used equipment of user access point. Used for the outdoor connection between optical distribution cable and optical in room cable. Available for aerial,duct,direct buried application.



Features

A. Up-down bisection, horizontal type
B. 2 inlet/outlet
C. 96 cores max capacity
D. Slide-in-lock design, over 90 opening angle tray
E. Elastic integrated seal ensure tightening fit
F. Housing provide fire resistant, waterproof, and quakeproof for splices while handing
G. Operating Temperature: -40 ~ +65 °C



Application

A. Suitable for bunchy fibers

B. Aerial ,wall-mounting

C.FTTH optical fiber distribution

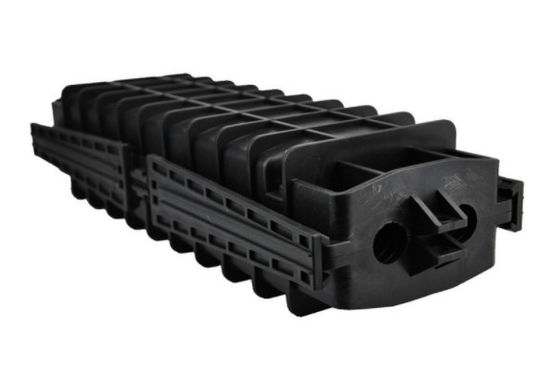

Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price 1Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price 2



FAQ & Certification



Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price 3

Light Weight Fiber Optic Joint Enclosure 16mm Ports Diameter black color horizontal type factory price 4
