All Dielectric Self-Supporting ADSS Cable / Optical Fiber Cable ADSS

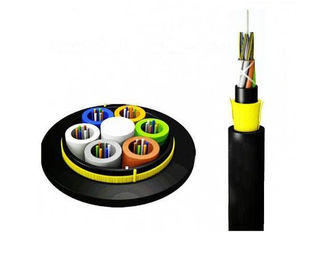

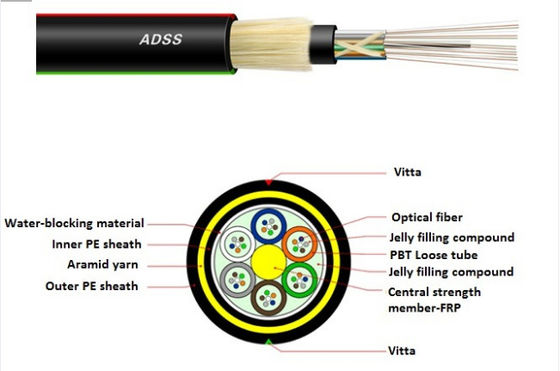

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are lled with a water-resistant filling compound. The tubes (and llers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is lled with lling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.
Structure characters
1.Loose tube with non-metallic strengthen member
2.High flexible amaid yarn
3.Can work at electric field<=25KV/m in a long period
4.UV-resistant outer jacket & Water blocked cable
Properties
1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
3.Suitable for all type of aerial lines.
Technical Date
(for 24 core fiber, 800m span)
| Fiber Optic Range |
Span(M) |
Out-diameter(MM) |
Module(N/) |
Linear Expanding Coefficient(1/K) |
Weight(KG/KM) |
Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. |
| 24 |
800 |
15.5 |
2.86X10 |
0.02X10 |
200 |
29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. |
| 24 |
800 |
14.5 |
2.33X10 |
0.11X10 |
185 |
19600
|
