2 - 144 Core Single Mode All Dielectric Self-Support Fiber Optic Cable , ADSS Cable Up To 288 Optic Fibers

All Dielectric Self-Supporting ADSS Cable / Optical Fiber Cable ADSS

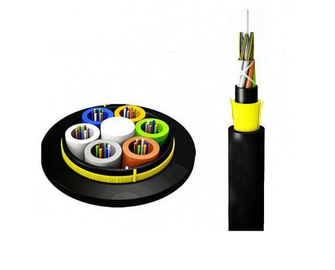

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Properties

1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation without power off and the normal transmission of cable won't be influenced by power line fault.


Applicable Fields

1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
3.Network in high electromagnetic interfering places.
4.Low-voltage transmission and distribution system.


Technical Date

(for 24 core fiber, 800m span)

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

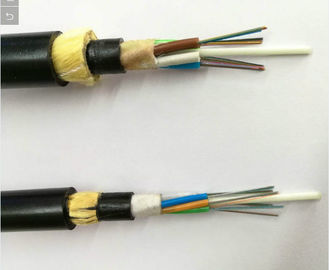

Details & Characters

1.Loose tube with non-metallic strengthen member
2.High flexible amaid yarn
3.Can work at electric field<=25KV/m in a long period

4.Can be installed without shutting off the power
