All Dielectric Self-Supporting ADSS Cable / Optical Fiber Cable ADSS
ADSS (All-Dielectric Self-Supporting) fiber optic cable is ideal for installation in distribution as well as transmission environments,even when live line installations are required. As it's name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network.EFON manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.
Characteristics
1. All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure;
2. Large number of fiber cores, light weight, can be laying with the power line, saving resources;
3. Adopt high tensile strengh aramid material to withstand strong tension and prevent cockles and gunshots;
4. Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.
Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.

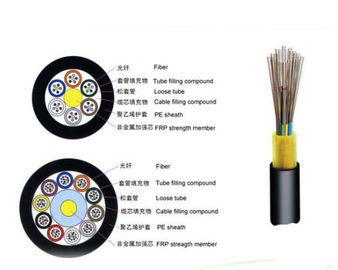

Structure characters
1.Loose tube with non-metallic strengthen member
2.High flexible amaid yarn
3.Can work at electric field<=25KV/m in a long period
Technical Date
(for 24 core fiber, 800m span)
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
