Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member

Negotiable
MOQ
Negotiable
Price
Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member
Features Gallery Product Description Request A Quote
Features
Specifications
Single Armour Material: Corrugated Aluminium Tape
Central Strength Member: RFP
Outer Sheath Color: Black
Loose Tube Material: PBT Or Jelly
Outer Sheath Material: PE
Brand Name Of Fiber: Corning, Yofc, Draka, Fujikura
Installation Methods: Aerial
Waterblocking Material: Water Blocking Tape Or Filling Compound
Operating Temperature: -40 Degree ~ +60 Degree
Highlight:

Armored Fiber Optic Ethernet Cable

,

Glass Yarn Fiber Optic Ethernet Cable

,

GYFTY-FS Fiber Optic Ethernet Cable

Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: Customize
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200km/Day
Product Description

Overhead Cable Glass Yarn Armored Fiber Optic Cable (GYFTY-FS)

Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 0

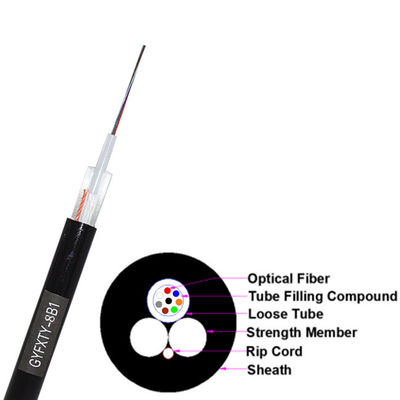

Structure characters
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath

Properties
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.

Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.



Technical data


Technical data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-36 10.4 90 10 times O.D. 20 times O.D. 1500 600 1000 300
38-60 10.2 110
62-72 11.7 115
74-96 13.4 150
98-120 15.0 190
122-144 16.6 230
146-216 16.9 240
218-240 19.3 305
242-288 21.5 375


Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 1

Packing Detail & Shipping
GYFTY Optic Fiber Cable package are wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.

Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 2


Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Certificate & FAQ
REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate

Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 3

Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 4



Our Company Profile

DONGGUAN TW-SCIE CO.,LTD.is a subsidiary of Tewang Group, established in 2002.After more than ten years
of unremitting efforts, it has developed into a comprehensive high-tech optical fiber communication product development.production. sales and network engineering.The company's headquarters is located in Oingxi Town.
Dongguan City,a beautiful industrial town.It has two modern industrial production bases in Dongguan,Guangdong
and Deyang,Sichuan, with an annual output of 20 million core kilometers of fiber optic cables.
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.


Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 5Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 6


Glass Yarn Armored Fiber Optic Ethernet Cable GYFTY-FS RFP Central Strength Member 7
