Multi Mode PBT Type OPGW Optical Ground Wire Large Diameter and Fiber Capacity Fiber Optic Cable

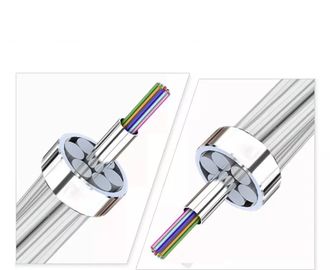

OPGW is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. Its working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.

Application

1.Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication.

2.Adapt to replace the aged ground wire and new structure of high voltage ground wire.

3.lighting protection and conduct the short circuit current.

4.Optical fiber communication ability.

Optical Fiber Characteristics

The optical, geometrical, mechanical and environment characteristics of the ITU-T G.652.D optical fiber shall be accordance with below table:

Characteristics			Specified Values	Units
Optical Characteristics
Mode field diameter		at 1310nm	9.1±0.5	µm
		at 1550nm	10.3 ± 0.7	mm
Attenuation coefficient		at 1310nm	≤0.36	dB/km
		at 1550nm	≤0.23	dB/km
Attenuation non-uniformity			≤0.05	dB
Zero dispersion wavelength ( λ0)			1300 ～1324	nm
Max zero dispersion slope (S0max)			≤0.092	ps/(nm2·km)
Polarization mode dispersion coefficient(PMDQ)			≤0.2
Cut-off wavelength (λcc)			≤1260	nm
Dispersion coefficient		1288～1339nm	≤3.5	ps/(nm·km)
		1550nm	≤18	ps/(nm·km)
Effective group index of refraction (Neff)		at 1310nm	1.466	－
		at 1550nm	1.467	－
Geometric characteristic
Cladding diameter			125.0±1.0	µm
Cladding non-circularity			≤1.0	%
Coating diameter			245.0±10.0	µm
Coating-cladding concentricity error			≤12.0	µm
Coating non-circularity			≤6.0	%
Core-cladding concentricity error			≤0.8	µm
Cladding / coating concentricity error			≤12.0	µm
Mechanical characteristic
Curling			≥4	m
Proof stress			≥0.69	GPa
Coating strip force	Average value		1.0-5.0	N
	Peak value		1.3-8.9	N
Macro bending loss	Ф60mm, 100 circles, at 1550nm		≤0.05	dB
	Ф32mm, 1 circles, at 1550nm		≤0.05	dB

Specification of OPGW

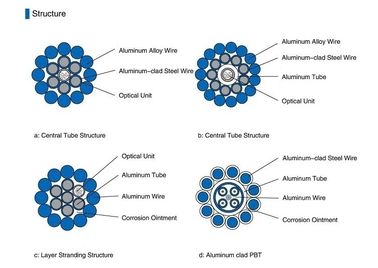

Product Structure

Packing and Shipping

The OPGW shall be tightly and uniformly wound on a strong wood-iron reel which conforms to ANSI/AA 53-1981 or equal. The reel shall be lagged with stout wood-iron battens so as to prevent the OPGW from damage in ordinary shipping, handling, storage and stringing operations.

According to length of cable, we choose different type reel (D,d,b,w1,w2) for loading cable.
