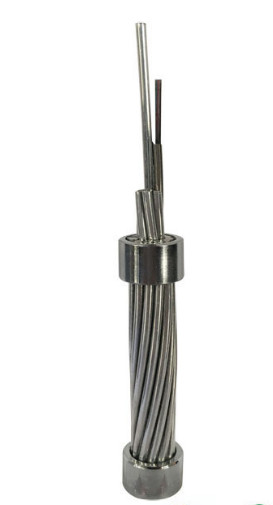

Composite OPGW Long Fiber Optic Cable Coating Non - Circularity for Telecommunication

Product Description

Technical Specifications Of Optical Fiber Cable

The optical, geometrical, mechanical, and environmental characteristics of the ITU-T G.652.D optical fiber shall comply with the table below.

Optical Fiber Characteristics

Characteristics			Specified Values	Units
Optical Characteristics
Mode field diameter		at 1310nm	9.1±0.5	µm
Mode field diameter		at 1550nm	10.3 ± 0.7	mm
Attenuation coefficient		at 1310nm	≤0.36	dB/km
Attenuation coefficient		at 1550nm	≤0.23	dB/km
Attenuation non-uniformity			≤0.05	dB
Zero dispersion wavelength ( λ₀)			1300 ～1324	nm
Max zero dispersion slope (S_0max)			≤0.092	ps/(nm²·km)
Polarization mode dispersion coefficient(PMD_Q)			≤0.2
Cut-off wavelength (λ_cc)			≤1260	nm
Dispersion coefficient		1288～1339nm	≤3.5	ps/(nm·km)
Dispersion coefficient		1550nm	≤18	ps/(nm·km)
Effective group index of refraction (N_eff)		at 1310nm	1.466	－
Effective group index of refraction (N_eff)		at 1550nm	1.467	－
Geometric characteristic
Cladding diameter			125.0±1.0	µm
Cladding non-circularity			≤1.0	%
Coating diameter			245.0±10.0	µm
Coating-cladding concentricity error			≤12.0	µm
Coating non-circularity			≤6.0	%
Core-cladding concentricity error			≤0.8	µm
Cladding / coating concentricity error			≤12.0	µm
Mechanical characteristic
Curling			≥4	m
Proof stress			≥0.69	GPa
Coating strip force	Average value		1.0-5.0	N
Coating strip force	Peak value		1.3-8.9	N
Macro bending loss	Ф60mm, 100 circles, at 1550nm		≤0.05	dB
Macro bending loss	Ф32mm, 1 circles, at 1550nm		≤0.05	dB

Characteristics of Cable

Cable Construction and Parameter

Overhead ground wire made of aluminum-clad steel wire (AS) and stainless steel tube containing optical fiber.

Cable type: OPGW-48B1.3-190[205;185.4]

Cross section of OPGW

Composite OPGW Long Fiber Optic Cable Coating Non - Circularity for Telecommunication 0

Structure		Material	No.	Material Diameter
	Fiber	G.652.D	48
	Center	20%AS wire	1	Diameter	4.0mm
	Layer 1	SUS Tube	4	Diameter	4.0mm
	Layer 1	20%AS wire	2	Diameter	4.0mm
	Layer 2	20%AS wire	12	Diameter	4.0mm

Specification of OPGW

Items			Technical Data
Stranded			Core, layer 1, layer 2
Stranding direction			Outer layer is right hand
Cable diameter (Nominal)			20.0mm
Cable Weight (Approx.)			1365kg/km
Supporting Cross Section		AS Wire	188.5mm²
Rated Tensile Strength (RTS)			205kN
Modulus of Elasticity (E-Modulus)			162.0kN/mm²
Thermal Elongation Coefficient			13.0×10^-6/K
Maximum Working Stress (40%RTS )			82.0kN
Everyday Stress(EDS)(18%～25%RTS)			36.9~51.25kN
DC Resistance at 20℃			0.442 ohm/km
Short time current (1.0s, 40℃～200℃)			13.62kA
Short time current Capacity I²t			185.4kA²s
Minimum bending radius	Installation		30 times of cable diameter
	Operation		15 times of cable diameter
Temperature Range	Installation		-10℃~+60℃
	Storage & shipping		-40℃~+60℃
	Operation		-40℃~+80℃

Fiber and Loose Tube Color Identification

The individual fiber and loose tubes shall accordance with standard TIA/EIA-598-A and the color code as below.

Steel tube 1 (No.1-12 fibers) : Single mode optical fiber (SM)

Fiber Colors

NO.	1	2	3	4	5	6	7	8	9	10	11	12
Color	Blue	Orange	Green	Brown	Grey	White	Red	Nature	Yellow	Violet	Pink	Aqua

Steel tube 2 (No.13-24 fibers) : Single mode optical fiber (SM)

One black tracer (50mm pitch)

NO.

Color

Blue

Orange

Green

Brown

Grey

White

Red

Nature

Yellow

Violet

Pink

Aqua

▌

Steel tube 3 (No.25-36 fibers) : Single mode optical fiber (SM)

One black tracer (100mm pitch)

NO.

Color

Blue

Orange

Green

Brown

Grey

White

Red

Nature

Yellow

Violet

Pink

Aqua

▌

Steel tube 4 (No.37-48 fibers) : Single mode optical fiber (SM)

One black tracer (150mm pitch)

NO.

Color

Blue

Orange

Green

Brown

Grey

White

Red

Nature

Yellow

Violet

Pink

Aqua

▌
