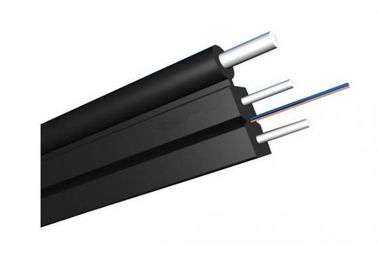

4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved

Negotiable
MOQ
Negotiable
Price
4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name Of Fiber: Corning ,Yofc,Draka, Fujikura...as Requirement
Color Of Loose Tube: Blue, Orange, Green, Brown
Strength Member: Steel Or FRP
Jacket Color: Black, White
Installation Style: Indoor & Outdoor Self-Support Drop Cable
Cable Dimension: 3.1*2.0mm
Cable Weight: 8.2kg/Km
Highlight:

aerial fiber optic cable

,

ftth aerial drop cable

Basic Infomation
Place of Origin: DONG GUAN CHINA
Brand Name: TW
Certification: SGS ROHS REACH ISO
Model Number: 4 Core Single Mode
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000KM/mouth
Product Description

4 Core Single Mode Optical Fiber Cable FTTH Drop Cable




This FTTH 2 Core Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.



Structure &Properties


1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients




Technical Date




ITEMS
UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100



4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 0
4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 1





Packing & Shipping

4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 2

4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 3




Company Profile


Dongguan TW-SCIE Co., Ltd. has more than 20 years of manufacturing experience since its establishment. For a long time, TW-SCIE has taken a series of effective measures in technology development, product innovation, quality control, internal management, and enterprise development. In order to ensure product quality, the company has established a three-level quality management system, starting from the source and management personnel, adopting top-down quality spot checks, bottom-up quality surveys and 360-degree quality monitoring of the entire system to ensure zero defect of the product. Subtly pass on corporate values and business philosophy to employees, and create a highly cohesive and loyal workforce. Today, the company has a large number of technical personnel and experienced management personnel, laying a solid foundation for the sustainable development of the enterprise.



4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 4

4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 54 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 6

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 7

4 Core Single Mode FTTH Network Drop Cable Good Mechanical Characteristics SGS Approved 8




Our Quality & Service


DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Solving your problem is our priority, pls feel free to contact us !
