Name: 36 Cores ofc Armoured Cable Direct Burial Loose Tube Fiber Optic Cable GYTA53 PBT Outer Sheath Highly Durable
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GYTA 53
Price: 0.10 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Core: 2-144 Core

Outer Sheath: PBT

Armor: Corrugated Aluminium Tape

Water Blocking Material: Water Blocking Tape Or Filling Compound

Central Strength Member: Steel Wire Or FRP

Brand Name Of Fiber: Corning ,Yofc,Draka, Fujikura...as Your Requiremen

Highlight:

armoured network cable

direct burial fiber optic cable

Basic Infomation

Place of Origin: CHINA

Brand Name: TW-SCIE

Certification: ISO, RoHS, REACH, TLC

Model Number: GYTA 53

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 7-10 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 400KM per day

Gallery

36 Cores ofc Armoured Cable Direct Burial Loose Tube Fiber Optic Cable GYTA53 PBT Outer Sheath Highly Durable

Product Description

Direct-Burial Loose Tube Stranding Fiber Optic Cable of GYTA53

The instruction of GYTA armored fiber optic cable is the single mode or multimode inserted to loosely tube by high the plastic of moudle. Filling warting blocking material in the tube. One single metal strength member is in the mid of cable, added a layer of polyethylene sheath on it for some cores of fiber cable(if necessary). loose tube and filling compound tightly tied up with center metal strength member roll to be cylindrical cable . Packed with PE sheath after armored Al-plastic tape .Packed with PE sheath after double armored polyethylene steel .

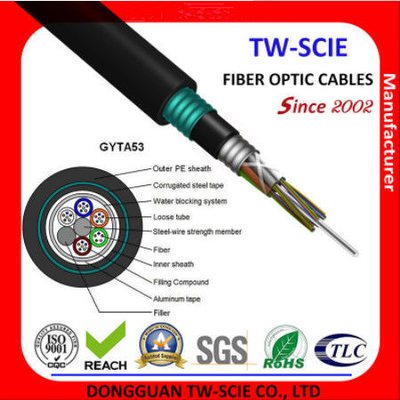

Cable Description from inside to outside

1. fiber

2. Steel-wire strengthen member

3. loose tube

4. inner sheath

5. water blocking system

6. filling compound

7. corrugated steel tape

8. outsheath

Characteristics

1. Steel tape strengthen.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.
7. Double PE sheath.

Application

1. Outdoor direct-buried or duct distribution.
2. Long distance and local area network communication.

Cable construction details

Items			Description
Number of fiber			2-144cores
Fiber	type		G652D/G657A/OM1/OM2/OM3/OM4
	diameter		250µm
Strength member	materia		Steel tape and E-glass
Inner sheath	material		PE
	diameter		/
Outer sheath	material		PE
	diameter		12.5~16.5mm
Cable size (Height * width)			/
Cable weight			155~255KG±1KG
Installation Temperature range(ºC)			-20+60
Operation and transport temperature(ºC)			-40+70
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	3000
Min allowable Tensile Strength(N)		Short term	4000
Crush Load (N/100mm)		Long term	300
Crush Load (N/100mm)		short term	1000

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	>=400	>=160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	>=800	>=500
Zero dispersion wavelength		nm	1300-1324	>=1302, ≤1322	----	----	>= 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	>= 1180, ≤1330	>=1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.
