Overhead Cable Glass Yarn Armored Fiber Optic Cable (GYFTY-FS)

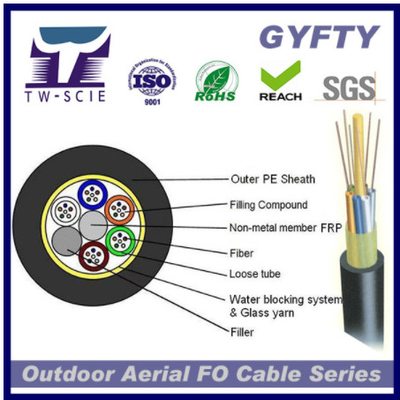

GYFTY optic fibre FRP locates in the center of cores as a non-metallic strength member. The cable tubes, which are filled with filling compound, are stranded around the strength member. Completed with a PE sheath. GYFTY cables are available from 2 cores to 144 cores. It is used in high-voltage area for long distance communications.
Characteristics
1.Up to 144 fibers.
2.Loose tube gel-filled construction for superior fiber protection.
3.Corrugated steel tape armor to protect cable from mechanical damage.
4.UV and waterproof design.
Applications
1.Interbuilding voice or data communication backbone.
2.Installed in duct, underground conduit.
Technical data
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.2 | 110 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15.0 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 | ||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
Packaging Detail
GYFTY Optic Fiber Cable package are wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.
