GYTA Loose Tube Multi Strand Aerial / Duct Fiber Optic Cable With Steel Type Armored

Negotiable
MOQ
Negotiable
Price
GYTA Loose Tube Multi Strand Aerial / Duct Fiber Optic Cable With Steel Type Armored
Features Gallery Product Description Request A Quote
Features
Specifications
Outer Sheath Color: Black
Outer Sheath Material: PE
Metallic Strengthen Member: Steel Wire
Filler: Filling Compound
Single Armour Material: Corrugated Aluminium Tape
Fiber Count: 2-288 Core
Brand Name Of Fiber: Corning ,Yofc,Draka,Fujikura Or As Your Requiremen
Waterblocking Material: Water Blocking Tape Or Filling Compound
Highlight:

fiber optic ethernet cable

,

multimode fiber optic cable

Basic Infomation
Place of Origin: DONG GUAN CHINA
Brand Name: TW
Certification: SGS ROHS REACH ISO
Model Number: GYTA
Payment & Shipping Terms
Packaging Details: customized
Delivery Time: 5 working days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 1000km/week
Product Description

GYTA Loose Tube Stranded Optical Fiber Cable with Steel Type Armored





Recommended laying methods


1.Aerial, Duct

2.Connecting communication equipments

3.Muiti-cores wiring system in data center

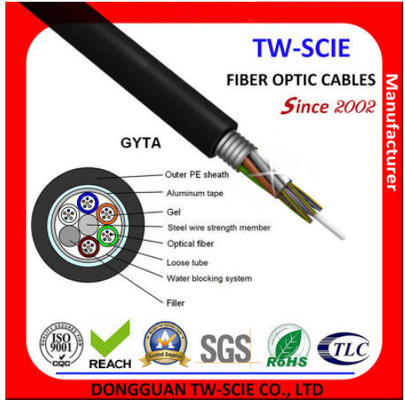

Structure Characters


1.Metalic strengthen member(phosphated steel wire)
2.Double coated PE Crrugated steel tape under PE sheath




Appicable fieds


1.Long-distance communication, LAN
2.Moisture-proof and rodent-proof



Technical data



Fiber Num. Outer diameter (mm) Weight (kg/km) Min. Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.8 95 10 times O. D. 20 times O. D. 1500 600 1000 300
32-36 10.3 115
38-60 10.7 115
62-72 11.3 140
74-96 12.9 175
98-120 14.4 210
122-144 15.8 245
146-216 16.3 260
218-240 19.5 345
242-288 21.7 415



GYTA Loose Tube Multi Strand Aerial / Duct Fiber Optic Cable With Steel Type Armored 0





Packing & Shipping



GYTA Loose Tube Multi Strand Aerial / Duct Fiber Optic Cable With Steel Type Armored 1

GYTA Loose Tube Multi Strand Aerial / Duct Fiber Optic Cable With Steel Type Armored 2
