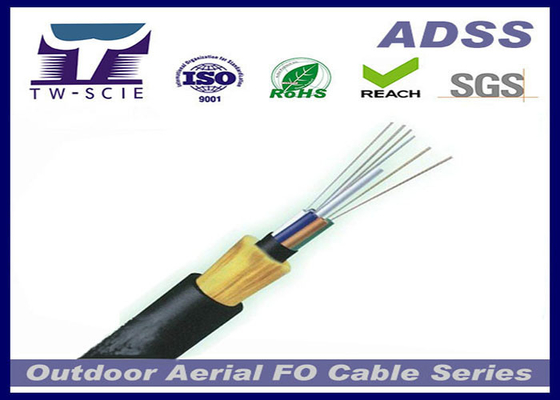

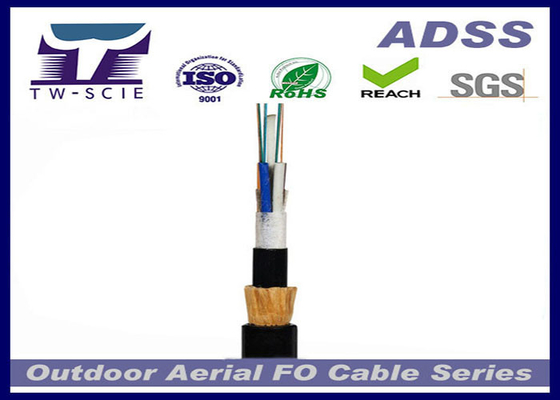

China Long Span Aramid Yarn Strength Armored Fiber Optic Cable Self Support Aerial ADSS

Factory price Long Span Aramid Yarn Self-support aerial ADSS

This ADSS Non-Metallic Single Mode Fiber Optic Cable are suitable for outdoor aerieal installation.Light armored structure with Amaid Yarn messager makes ADSS Non-Metallic Single Mode Fiber Optic Cable reduce itself gravity.


Properties

1. Up to 288 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.


Applicable Fields

1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.

3.Suitable for all type of aerial lines.

Technical Date

(for 24 core fiberr, 800m span)

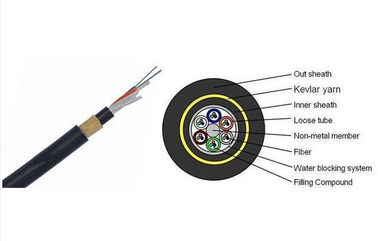

 Product Structure

ADSS Non-Metallic Single Mode Fiber Optic Cable Structure characters:
Loose tube with non-metallic strengthen member
High flexible amaid yarn
Can work at electric field<=25KV/m in a long period

Exhibition

Our Certificates

Products and Services

DONGGUAN TW-SCIE Co,. LTD has been committed to the production of optical cables for more than 20 years and Has a number of certificates and two production bases.The company produces and develops outdoor optical cables, indoor optical cables, ADSS, OPGW, etc. Over the years, it has accumulated a group of loyal customers at home and abroad, winning reputation with quality, and earning trust with integrity.
