Name: Double Jacket Multi Core G657A2 ADSS Loose Tube Fiber Optic Cable With Excellent AT Performance
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: ADSS
Price: 163.40 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Strength Member: Aramid Yarn

Fiber Type: G657A2

Type: ADSS

Fiber Count: 2-288

Jacket Material: PE

Packing: 2-4km/wooden Drum

Operating Temperature: -40 ~ +60 C

Custom: Customized Available

Application For: Aerial

Life Expectancy: Over 30 Years

Oem: YES

Structure: Multi Core

Highlight:

adss cable

dielectric fiber optic cable

Basic Infomation

Place of Origin: Dongguang China

Brand Name: TW-SCIE or OEM

Certification: SGS IOS9000

Model Number: ADSS

Payment & Shipping Terms

Packaging Details: 2-4km/wooden drum

Delivery Time: in 3 weeks

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20km/day

Gallery

Double Jacket Multi Core G657A2 ADSS Loose Tube Fiber Optic Cable With Excellent AT Performance

Product Description

ADSS 2-144 Core All-Dielectric Self-Supporting Optical Fiber Cable Manufacturers The Floor Price,Outdoor Fiber Optic Cable

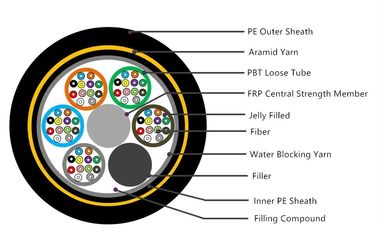

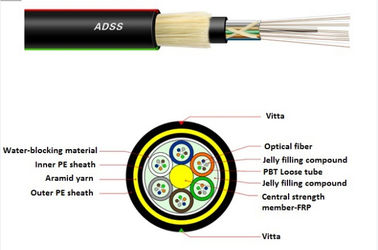

1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

2. The tubes are filled with a water-resistant filling compound.

3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

Characteriatic

1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

4. Conducting large fault short-circuit current and providing lightning protection

Applications

1.Adopted to outdoor distribution

2.Suitable for aerial network

3.Long distance and local area network communication

4.Low-voltage transmission and distribution system

Parameter

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Max working tension kN	Strength member CSA mm2	Modulus of elasticity kN/mm2
ADSS	2	1	4	12.5	136	1.5	4.6	7.6
ADSS	4	2	3	13.0	142	2.25	7.6	8.3
ADSS	8	3	2	13.3	148	3.0	10.35	9.45
ADSS	10	4	1	13.6	156	3.6	13.8	10.8
ADSS	12	5	0	13.8	159	4.5	14.3	11.8
ADSS	14	6	0	14.5	177	5.4	18.4	13.6
ADSS	16	4	1	14.9	185	6.75	22.0	16.4
ADSS	20	5	0	15.1	193	7.95	26.4	18.0
ADSS	24	6	0	15.5	201	9.0	32.2	19.1
ADSS	28	7	1	15.6	208	10.5	33.0	19.6
ADSS	32	8	0	16.3	226	12.75	40.0	21.0
ADSS	36	9	1	16.8	242	15.45	48.0	24.0
ADSS	42	10	0	17.2	253	16.2	51.0	25.1
ADSS	48	11	1	17.9	266	18.0	58.8	25.1

Ref.outer diameter (mm)	Ref.weight kg/km Weight		Ref.daily max.working tension (kN)	Max allowable working tension (kN)	Break strength (kN)	Strength member CSA (mm2)	Modulus of elasticity kN/ (mm2)	Heat expansion coefficient ×10-6 /k
Ref.outer diameter (mm)	PE sheath	AT sheath	Ref.daily max.working tension (kN)	Max allowable working tension (kN)	Break strength (kN)	Strength member CSA (mm2)	Modulus of elasticity kN/ (mm2)	Heat expansion coefficient ×10-6 /k
12.5	125	136	1.5	4	10	4.6	7.6	1.8
13	132	142	2.25	6	15	7.6	8.3	1.5
13.3	137	148	3.0	8	20	10.35	9.45	1.3
13.6	145	156	3.6	10	24	13.8	10.8	1.2
13.8	147	159	4.5	12	30	14.3	11.8	1.0
14.5	164	177	5.4	15	36	18.4	13.6	0.9
14.9	171	185	6.75	18	45	22	16.4	0.6
15.1	179	193	7.95	22	53	26.4	18	0.3
15.5	190	204	9.0	26	60	32.2	19.1	0.1
15.6	194	208	10.5	28	70	33	19.6	0.1
16.3	211	226	12.75	34	85	40	20.1	-0.4
16.8	226	242	15.45	41	103	48	24	-0.5
17.2	236	253	16.2	45	108	51	25.1	-0.8
17.9	249	266	18	50	120	58.8	26.1	-0.8

Optical Characteristic

		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive
		G.657(A1,A2 ,B3)		dispersion shifted single-mode fiber

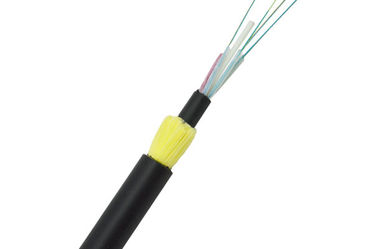

Double Jacket Multi Core G657A2 ADSS Loose Tube Fiber Optic Cable With Excellent AT Performance 0

Double Jacket Multi Core G657A2 ADSS Loose Tube Fiber Optic Cable With Excellent AT Performance 1

Double Jacket Multi Core G657A2 ADSS Loose Tube Fiber Optic Cable With Excellent AT Performance 2

Exhibition

Competitive Advantages

1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service

WE LOOK FORWARD TO HEARING FROM YOU !
