ADSS 2-144 Core All-Dielectric Self-Supporting Optical Fiber Cable Manufacturers The Floor Price,Outdoor Fiber Optic Cable
1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2. The tubes are filled with a water-resistant filling compound.
3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4. After the cable core is filled with filling compound.
5. it is covered with thin PE (polyethylene) inner sheath.
6. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Characteriatic
1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4.Large span lengths and the largest span is over 1000m
5. Good performance of tensile strength and temperature
6. The design life span is 30 years
Parameter
| Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter
mm
|
Cable Weight kg/km |
Max working tension kN |
Strength member CSA mm2 |
Modulus of elasticity kN/mm2 |
| ADSS |
2 |
1 |
4 |
12.5 |
136 |
1.5 |
4.6 |
7.6 |
| ADSS |
4 |
2 |
3 |
13.0 |
142 |
2.25 |
7.6 |
8.3 |
| ADSS |
8 |
3 |
2 |
13.3 |
148 |
3.0 |
10.35 |
9.45 |
| ADSS |
10 |
4 |
1 |
13.6 |
156 |
3.6 |
13.8 |
10.8 |
| ADSS |
12 |
5 |
0 |
13.8 |
159 |
4.5 |
14.3 |
11.8 |
| ADSS |
14 |
6 |
0 |
14.5 |
177 |
5.4 |
18.4 |
13.6 |
| ADSS |
16 |
4 |
1 |
14.9 |
185 |
6.75 |
22.0 |
16.4 |
| ADSS |
20 |
5 |
0 |
15.1 |
193 |
7.95 |
26.4 |
18.0 |
| ADSS |
24 |
6 |
0 |
15.5 |
201 |
9.0 |
32.2 |
19.1 |
| ADSS |
28 |
7 |
1 |
15.6 |
208 |
10.5 |
33.0 |
19.6 |
| ADSS |
32 |
8 |
0 |
16.3 |
226 |
12.75 |
40.0 |
21.0 |
| ADSS |
36 |
9 |
1 |
16.8 |
242 |
15.45 |
48.0 |
24.0 |
| ADSS |
42 |
10 |
0 |
17.2 |
253 |
16.2 |
51.0 |
25.1 |
| ADSS |
48 |
11 |
1 |
17.9 |
266 |
18.0 |
58.8 |
25.1 |
Ref.outer diameter
(mm) |
Ref.weight
kg/km Weight |
Ref.daily max.working tension
(kN)
|
Max allowable working tension
(kN) |
Break strength
(kN) |
Strength member CSA
(mm2) |
Modulus of elasticity kN/
(mm2) |
Heat expansion coefficient ×10-6 /k |
| PE sheath |
AT sheath |
| 12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
| 13 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
| 13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
| 13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
| 13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
| 14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
| 14.9 |
171 |
185 |
6.75 |
18 |
45 |
22 |
16.4 |
0.6 |
| 15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18 |
0.3 |
| 15.5 |
190 |
204 |
9.0 |
26 |
60 |
32.2 |
19.1 |
0.1 |
| 15.6 |
194 |
208 |
10.5 |
28 |
70 |
33 |
19.6 |
0.1 |
| 16.3 |
211 |
226 |
12.75 |
34 |
85 |
40 |
20.1 |
-0.4 |
| 16.8 |
226 |
242 |
15.45 |
41 |
103 |
48 |
24 |
-0.5 |
| 17.2 |
236 |
253 |
16.2 |
45 |
108 |
51 |
25.1 |
-0.8 |
| 17.9 |
249 |
266 |
18 |
50 |
120 |
58.8 |
26.1 |
-0.8
|
Optical Characteristic
| |
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation(+20ºC)
|
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| |
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
| Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
| Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
| |
|
A1b:62.5/125 |
| Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
| G.652D |
|
B2: Zero dispersion shifted |
| G.655 |
|
B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) |
B4: Main technical data for positive |
dispersion shifted single-mode fiber
|
Competitive Advantages
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service

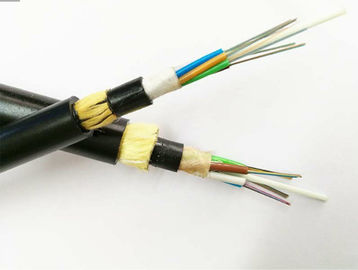

Product Structure
Packaging Detail
ADSS 2-144 Core Optical Fiber Cable package are with export wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers. welcome to contact us!
Specifications
· OEM 2-144 Core Optical Fiber Cable
· Cutomer LOGO
· Factory price
· 25 years quality guaranteed
Exhibition
Our certificates
