OPGW Optical Ground Wire 36 Core Outdoor Aerial Fiber Optic Cable
The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
Features
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber
• The number of strands can be designed in two or three layers
• Match with common ground wires
Speicfication
| Structure | Max fiber count | AS sectional area | Dia.(mm) | Weight (kg/km) | RTS(kN) | 20°C DC resistance (O/km) | 40-200°C Allowable short circuit current capacity(KA2.S ) | |
| OPGW-36B1.3-120-[145;73] | 1/3.0/20AS+5/2.9/20AS+ | 36 | ≈120 | 14.6 | ≤820 | ≥145 | ≤0.77 | ≥73 |
| 12/2.9/20AS,Unit 1/2.8 | ||||||||
| OPGW-36B1.3-120-[95;98] | 1/3.0/30AS+5/2.9/30AS+ | 36 | ≈120 | 14.6 | ≤700 | ≥95 | ≤0.55 | ≥98 |
| 12/2.9/30AS,Unit 1/2.8 | ||||||||
| OPGW-36B1.3-120-[74;110] | 1/3.0/40AS+5/2.9/40AS+ | 36 | ≈120 | 14.6 | ≤582 | ≥74 | ≤0.42 | ≥110 |
| 12/2.9/40AS, Unit 1/2.8 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

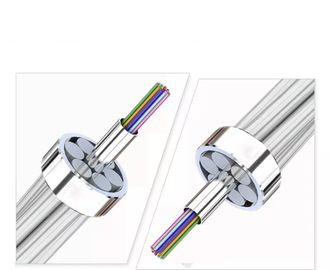

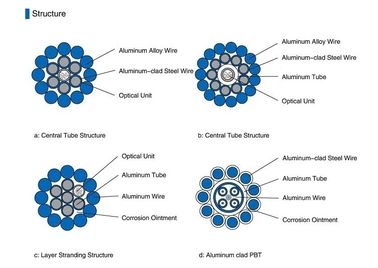

Structure and Product Pictures
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
