GYXTY 10 Core Single Mode Central Loose Tube Outdoor Aerial and Duct Fiber Optic Cable
Steel Wire Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, protected with steel wire armor. The whole set cover with a black polyethylene outer jacket.
It is designed with the flexibility and versatility required for today's most demanding installations, including aerial, Conduit and Duct. Overall steel wire armoring provide good tensile and crush resistant.
Features
1.Uni-tube gel-filled construction for superiorfiber protection
2.Compact, easy to install
3.UV and moisture-resistant design
4.Good mechanical and temperature performance
5.High strength loose tube that is hydrolysis resistant
6.Special tube filling compound ensure a critical protection of fiber
7.Crush resistance and flexibility
8.Two parallel steel wires ensure tensile strength
9.Small diameter, light weight and friendly installation
Speicfication
|
Fiber Count |
Diameter (mm) |
Cable weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
2~12 |
8.2 |
65 |
600/1500 |
1000/3000 |
10D/20D |
|
14-24 |
9.5 |
80 |
600/1500 |
1000/3000 |
10D/20D |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

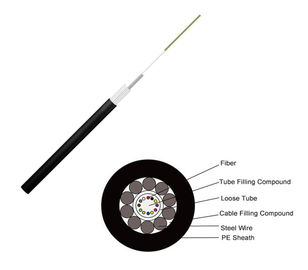

Structure and Product Pictures
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
