Double jacket 24 Core Non Metallic Structure self support ADSS cable 100m span for Aerial application

Negotiable
MOQ
Negotiable
Price
Double jacket 24 Core Non Metallic Structure self support  ADSS cable  100m span for Aerial application
Features Gallery Product Description Request A Quote
Features
Specifications
Model No: ADSS
Loose Tube Material& Filling Material: PBT&Jerry
Maximum Span: 1500m
Central Strength Member: Non-Metallic
Strength Material: High Flexible Amaid Yarn
Core Moisture Protection Methodology: Water Blocking Tape Or Filling Compound
Brand Name Of Fiber: Corning ,Yofc, Fujikura...as Your Requiremen
Color Of Loose Tube: Blue, Orange,Green , Brown,Red Etc
Installation Style: Self-Support Aerial
Highlight:

Non Metallic Structure Adss Cable

,

96 Core Adss Cable

,

Non Metallic Adss Cable

Basic Infomation
Place of Origin: Dongguan, Guangdong, China (Mainland)
Brand Name: TW-SCIE or OEM
Certification: SGS ROHS REACH ISO
Model Number: ADSS
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 km/per day
Product Description

ADSS Fiber Optic Cable

All-dielectric Self-support 24 Core Fiber Optic Cable

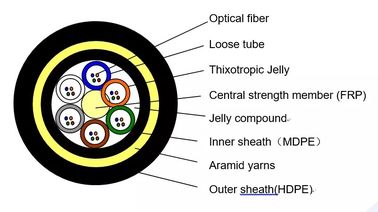

Structure Characters
Loose tube with non-metallic strengthen member
High flexible amaid yarn
Can work at electric field<=25KV/m in a long period



Technical Characteristics


24 optic fibers
Light weight, laying with the power line
Strong anti-pull performance, more than 90KN.
Non metallic structure provides good insulation, excellent lightning resistant.
Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
Excellent bullet resistant performance
Excellent tracking resistant performance.
Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault




Application Scenario

  Power Telecommunication


Technical Date:(for 24 core fiber )



Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600



Image Describtion

Double jacket 24 Core Non Metallic Structure self support  ADSS cable  100m span for Aerial application 0

Certification
REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate

Double jacket 24 Core Non Metallic Structure self support  ADSS cable  100m span for Aerial application 1





Packing & Shipment & FAQ


With wooden drum. covered with a thermal wrap .With plastic protection caps to prevent water penetration



Double jacket 24 Core Non Metallic Structure self support  ADSS cable  100m span for Aerial application 2

Double jacket 24 Core Non Metallic Structure self support  ADSS cable  100m span for Aerial application 3

Double jacket 24 Core Non Metallic Structure self support  ADSS cable  100m span for Aerial application 4
