Loose Tube Stranded GYTA Outdoor Aerial and Duct 24 Core Single Mode Fiber Optic Cable
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Features
1.Multi-tube model: Steel tape Armoured steel band structure, excellent mechanical and environmental performance.
2.Rational design and accurate control of excessive length of the optical cable inside the loose tube so as to guarantee superior mechanical and environmental performance.
3.Single PE jacket, improve moistureproof high intensity, good counter side pressure resistant capability.
Speicfication
|
Fiber Count |
Diameter (mm) |
Cable weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
2~30 |
9.6 |
90 |
600/1500 |
800/1000 |
10D/20D |
|
32-36 |
10.0 |
97 |
600/1500 |
800/1000 |
10D/20D |
|
38-60 |
10.4 |
112 |
600/1500 |
800/1000 |
10D/20D |
|
62-72 |
11.0 |
130 |
600/1500 |
800/1000 |
10D/20D |
|
74-96 |
12.5 |
165 |
600/1500 |
800/1000 |
10D/20D |
|
98-120 |
14.0 |
190 |
600/1500 |
800/1000 |
10D/20D |
|
122-144 |
16.5 |
245 |
600/1500 |
800/1000 |
10D/20D |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
Structure and Product Pictures
Packing and Shipping

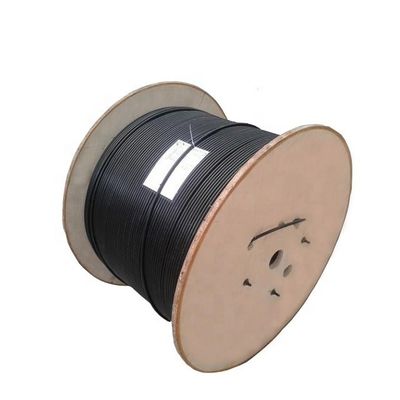

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
