48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber: G652D, G657A1, G657A2

Fiber Count: 2-48 Fibers

Cable Diameter: 40-80mm

Package: Iron-wooden Reel

Optical Unit: SST,PBT

Layer: AS, AA

Application: Telecommunication, Aerial

Operating Temperature: -40°C To + 70°C

Highlight:

opgw wire

fiber optic opgw cable

Basic Infomation

Place of Origin: China

Brand Name: TW-SCIE

Certification: CE, ROHS, REACH, SGS, ISO

Model Number: OPGW

Payment & Shipping Terms

Packaging Details: wooden-iron reel

Delivery Time: 20 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 KM PER MOUTH

Gallery

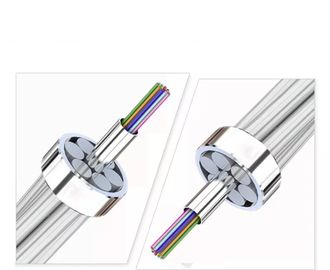

48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire

Product Description

2-48 Core Optical Fiber Composite Overhead Ground Wire OPGW

Name: 48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: OPGW
Price: 184.60 USD
Availability: InStock

48 Core Aerial Central Optical Unit Overhead Ground Wire Opgw Cable Optical ground wire 0

Description

The central stainless steel tube cable and the OPGW are widely used for electric and communication needs. OPGW has multiple functions and can be customized for different structures.

Features

Fibers are protected and lightweight with excellent mechanical and electrical properties. They withstand high stress and match common ground wires.

Speicfications

	Classification	Material	Value
Construction	Optical Fibre	G652D/G655 etc.	2 - 48
	Protection Tube	Stainless steel tube	1.5 - 6mm
	Stranded Line	AS wire/AA wire/Al Rod	1.5 - 6mm
	Max. Diameter		18mm
	Max. Cross Section		200mm2
Characteristic	According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
	Max. Tensile Strength (RTS ) (kN)		280
	Max. Crush Strength(N/100mm)		2200
	Max. Short Current Capacity (40℃-200℃)(kA2s)		100
	Min. Bending Radius (Dynamic)		20D
	Min. Bending Radius (Static)		15D
Environment Performance	Installation (℃)		-10 to +50
Environment Performance	Transportation and Operation (℃)		-40 to +65

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

Structure and Product Pictures

Packing & Shipping

Cable is supplied on separate drums in specified lengths with plastic protection caps, and a test report for each fiber.
