Special Aramid Yarn 24 Core ADSS All Dielectric Fiber Optic Cable Anti Tracking

Special Anti-tracking 24 Core ADSS Fiber Optic Cable

ADSS cables(Full Dielectric Self Support) are ideal for installation in power distribution and transmission environments. ADSS does not require support or messenger lines, so it can be completed in one installation, making ADSS an economical and simple way to realize fiber optic networks. It is the first choice when producing your own accessory hardware and supplying formed wire accessories.

Properties

1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

Applications

1.Adopted to Outdoor distribution

2.Network in high electromagnetic interfering places

3.Long distance and local area network communication

4.Low-voltage transmission and distribution system

Technical Date

(for 24 core fiber, 800m span)

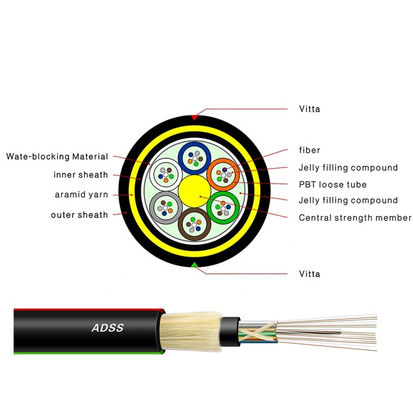

Product Structure
