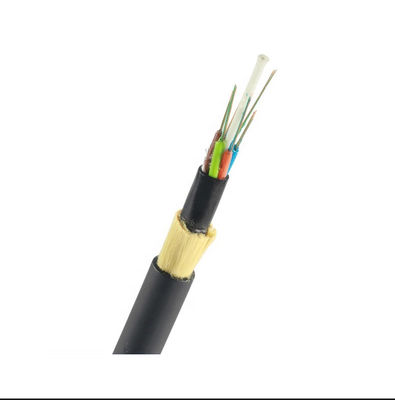

Black PE Sheath 100 Span 48 Cores G652D ADSS Dielectric Fiber Optic Cable

100 Span 48 Cores ADSS Fiber Optic Cable


ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Features

1.Can be installed without shutting offthe power.
2.ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
4.Large span lengths and the largest span is over 200m.
5.Good performance oftensile strength and temperature.
6.The design life span is over 30 years.

Applications

1.Railways and Telecommunications pole route.

2.Low-voltage transmission and distribution system.

3.Long distance and local area network communication.

4.Network in high electromagnetic interfering places.

General Specifications

Standard Color Identification of Fiber

Cable Design

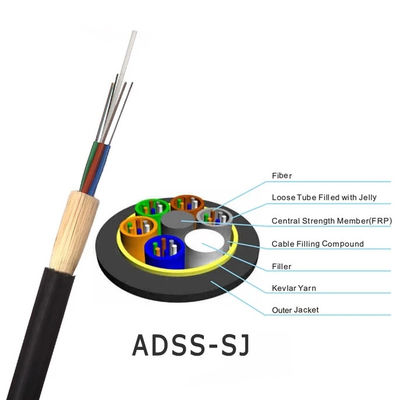

Product Structure

Cable Sheath Marking

Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer’s requirements.
