Double Sheath Outdoor 6 Core ADSS Fiber Optic Cable

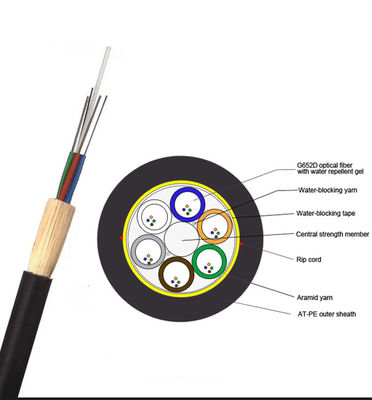

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling
Applications
1.Suitable for all type of aerial lines
2.Adopted to Outdoor distribution
3.Low-voltage transmission and distribution system
4.Railways and Telecommunications pole route
Technical Data
|
Span : 100m
|
under 110kv
|
2~30 core
|
|
structural parameter
|
Central strength components : FRP
|
Diameter : 1.5mm
|
|
Loose tube (jelly filled )
|
Outer diameter :1.8mm
|
|
|
Inner sheath PE
|
Thickness : 0.9mm
|
|
|
Outer sheath PE
|
Thickness :1.8mm
|
|
|
Technical parameter
|
Outer diameter of Cable
|
11mm
|
|
cable cross-sectional area
|
95.03 mm2
|
|
|
Fiber model
|
G.652
|
|
|
Weight of cable
|
98kg/km
|
|
|
Rated tensile strength (RTS)
|
10 kn
|
|
|
Minmum allowed tension (MAT)
|
4kn
|
|
|
EDS
|
3.2kn
|
|
|
Young's modulus
|
7.8 kn/mm2
|
|
|
Coefficient of thermal expansion
|
1.8 10-6/°C
|
|
|
Cruss resistance
|
Long term :1100 n/100mm
|
|
|
Short term:2200 n/100mm
|
||
|
Permission bent radius
|
Long term (when running) 220 mm
|
|
|
Short term (when laying) 360 mm
|
||
|
Operating temperature
|
When laying -15~+60 °C
|
|
|
|
When transporting or running :-40~+70°C
|
|
|
Fiber excess length
|
0.5-0.7%
|
|
|
Outer sheath
|
PE
|
|
|
Ice load
|
5mm
|
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
