OEM G652D 6 Core Outdoor Types Single Mode Self-Support ADSS Fiber Optic Cable

G652D Outdoor Types 6 Core ADSS Fiber Optic Cable

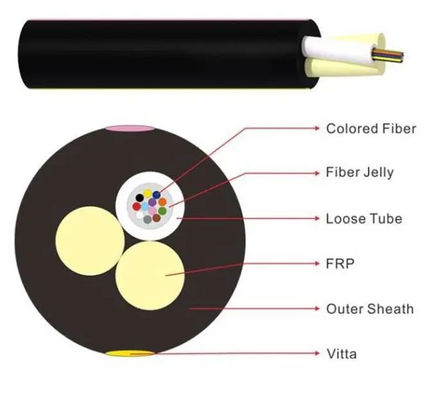

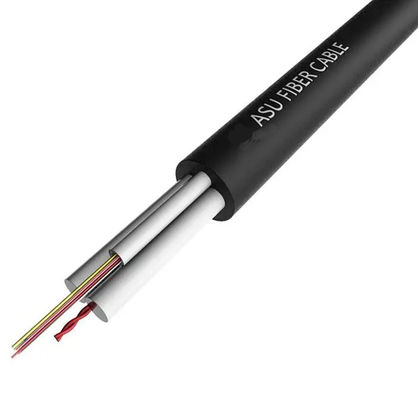

ADSS cables are composed of 2 to 36 fibers containing tubes or fillers, which are twisted up to 3 layers around the central strengthening member and bound in a PE sheath. Each tube of our ADSS cable contains 6-12 fibers, and all fibers in the core are filled with water blocking gel. Packing can be used to maintain the geometry of the cable. The outer jacket is tightly wrapped in the aramid yarn layer, and the cable sheath includes an optional inner polyethylene sheath and an outer polyethylene sheath.

Advantages

1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

Applications

1.Network in high electromagnetic interfering places.

2.Long distance and local area network communication.

3.Low-voltage transmission and distribution system.

4.Suitable for all type of aerial lines.

Cable Performance Parameter
