12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member

Negotiable
MOQ
Negotiable
Price
12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member
Features Gallery Product Description Request A Quote
Features
Specifications
Single Armour Material: Corrugated Aluminium Tape
Loose Tube Material: PBT Or Jelly
Outer Sheath Material: PE
Outer Sheath Color: Black
Messenger Material: Steel Wires
Brand Name Of Fiber: Corning, Yofc, Draka, Fujikura
Waterblocking Material: Water Blocking Tape Or Filling Compound
Installation Methods: Aerial
Operating Temperature: -40 Degree ~ +60 Degree
Highlight:

12 Core ADSS Fiber Optic Cable

,

Aramid Yarn ADSS Fiber Optic Cable

,

Frp Strength ADSS Fiber Optic Cable
Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: ADSS
Payment & Shipping Terms
Packaging Details: Customize
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union,MoneyGram
Supply Ability: 200km/Day
Product Description



12-Core ADSS Fiber Optic Cable with Aramid Yarn, Water-Blocking Tape

 FRP Strength Member, and Double Jacket




DESCRIPTION

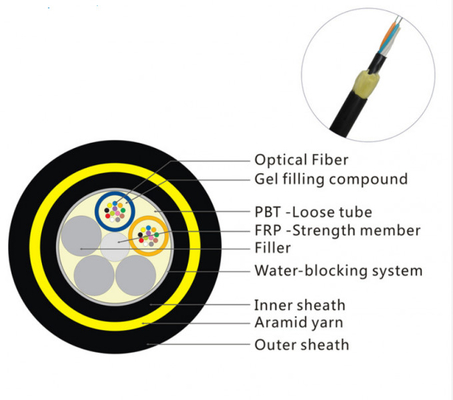

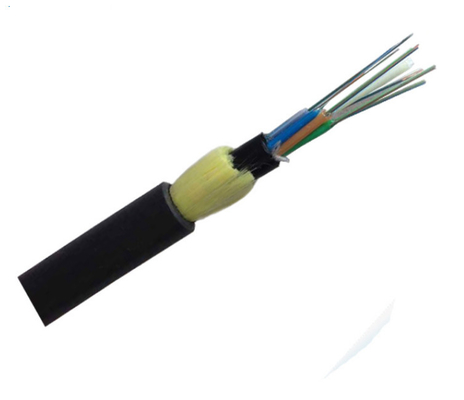

The ADSS cable consists of fibers that are 250μm in size and are placed inside a loose tube made of a high modulus plastic. The tube is then filled with a water-resistant compound and wrapped with Kevlar. A water-blocking material is applied between the Kevlar and the loose tube to ensure the cable is compact and watertight. Finally, the cable is finished with a polyethylene (HDPE) or AT sheath.


CHARACTERISTICS
Connect with confidence - Our lightweight and strong cable spans 100m with ease. Featuring a small diameter and low tower load, it's the perfect choice for any installation. Our watertight design ensures your connectivity stays intact, with a Single Fiber Reinforced Plastic as the central strength member, Loose tube filling compound and 100% cable core filling. Choose our cable for seamless connectivity you can trust!


12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member 0



APPLICATION

Experience seamless communication, anywhere and anytime. Our innovative technology works in challenging environments, even alongside power lines. Trust us for superior cable performance.

Cable Performance Parameter
Span meter 200 300 400
Related Strength Tension(RTS) 17.5 kn 20.6 kn 28 kn
Max Allowable Tension(MAT) 6.9 kn 8.2 kn 11.5 kn
Allowable Crush Resistance Long Term: 1100 n/100mm Long Term: 1100 n/100mm Long Term: 1100 n/100mm
Short Term: 2200 n/100mm Short Term: 2200 n/100mm Short Term: 2200 n/100mm
Minimum Bending Radius Operating: 220 mm Operating: 220 mm Operating: 220 mm
Installlation: 360 mm Installlation: 360 mm Installlation: 360 mm
Temperature Range Operating: -40 /+70℃ Operating: -40 /+70℃ Operating: -40 / +70℃
Installlation: -15 / +60℃ Installlation: -15 / +60℃ Installlation: -15 / +60℃
Out Sheath Material Electrical Resistance AT (Borealis material 6081) Sheath
Note ice accretion 5MM,weed speed:30M/S


Fiber Parameters

Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications		 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications		 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



Packing & Shipping
WIth Regular Dimension 100cm*75cm*75cm Wooden Drum
12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member 1
Certification & FAQ

12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member 2

12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member 3

Company Profile


Dongguan TW-SCIE Co., Ltd. is specialized in developing, manufacturing and selling of optical fiber communicationsproducts and integrates with independent import and export rights high-tech enterprises.Dongguan TW-SCIE Co., Ltd is a high-tech enterprise group in China devoted to
communications undertakings with ourown importers and exporters rights.
Since its founding, high quality products and strong co-operations have enabled the enterprise to stably and rapidly growinto a specialized communication manufacturer which supplying and engineering service can provide the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise possesses a passel of faithful, intelligent,conscientious talents, while bending ourselves to follow up the worldwide advanced technology. At the same time,we’ve established relationship with many scientific research academies.

 12 Core ADSS Fiber Optic Cable Aramid Yarn Water Blocking Tape Frp Strength Member 4
