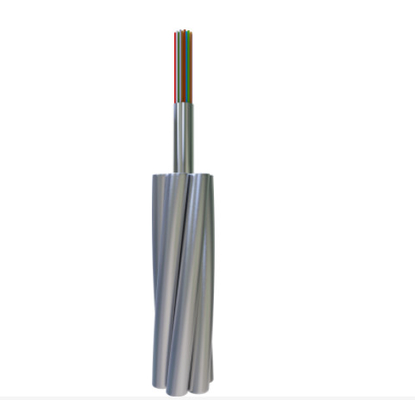

Optical Fibre Composite Overhead Ground Wire (Uni-tube)
Characteristics
The protection and support of the optical fibers are provided by stainless steel tubes that are filled with hydrophobic gel. The tensile performance is good. The tubes have a small diameter and light weight, which results in low additional load on the tower. The optical unit has an appropriate excess length of fiber, which makes it easy to assemble.
|
|
Attenuation |
Bandwidth |
Polarization Mode Dispersion |
|||||
|---|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
Individual Fibre |
Design Link Value (M=20, Q=0.01%) |
|
| G652D | — | — | ≤0.35dB/km | ≤0.21dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
| G655 | — | — | — | ≤0.22dB/km | — | — | ≤0.20ps/ km | ≤0.1ps/ km |
| 50/125μm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥600MHz.km | ≥1200MHz.km | — | — |
| 62.5/125μm | ≤3.5dB/km | ≤1.0dB/km | — | — | ≥200MHz.km | ≥600MHz.km | — | — |
Constructions and Performance
|
|
Classification |
Material |
Value |
|
Construction |
Optical Fibre | G652D/G655 etc. | 2 - 48 |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | |
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
| Max. Diameter | 18mm | ||
| Max. Cross Section | 200mm2 | ||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
| Max. Tensile Strength (RTS ) (kN) | 280 | ||
| Max. Crush Strength(N/100mm) | 2200 | ||
| Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
| Min. Bending Radius (Dynamic) | 20D | ||
| Min. Bending Radius (Static) | 15D | ||
| Environment Performance | Installation (℃) | -10 to +50 | |
| Transportation and Operation (℃) | -40 to +65 | ||
Note: D is cable diameter.
Specific Type and Technical Data
|
No. |
Technical Data |
||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Product Type |
Structure Type |
Max. Fibre Count |
Section of AS Wire |
Diameter (mm) |
Cable Weight |
Rate Tensile Strength (kN) |
20℃DC Resistance (Ω/km) |
Short Time Current Capacity (40-200℃ kA2.s) |
|
| 1 | OPGW-24B1.3-40-[51;9] | 6/3.0/20AS, Optical Unit 1/3.0 | 24 | ≈40 | 9.0 | ≤304 | ≥51 | ≤2.10 | ≥9 |
| 2 | OPGW-24B1.3-50-[58;11.5] | 6/3.2/20AS, Optical Unit 1/3.2 | 24 | ≈50 | 9.6 | ≤345 | ≥58 | ≤1.82 | ≥11.5 |
| 3 | OPGW-48B1.3-70-[77;24] | 6/3.8/20AS, Optical Unit 1/3.8 | 48 | ≈70 | 11.4 | ≤475 | ≥77 | ≤1.30 | ≥24 |
| 4 | OPGW-48B1.3-70-[42;38] | 6/3.8/40AS, Optical Unit 1/3.8 | 48 | ≈70 | 11.4 | ≤340 | ≥42 | ≤0.70 | ≥38 |
Other optical fibre type and count, stranded wire are available on request.
Mechanical and Environmental Testing Characteristics
|
Item |
Test Method |
Requirements |
|---|---|---|
|
Tension |
IEC 60794-1-2-E1 Load: according to cable structure Sample length: no less than 10m, linked length no less than100m Duration time: 1min |
40%RTS no additional fibre strain(0.01%), no additional attenuation (0.03dB). 60%RTS fibre strain≤0.25%,additional attenuation≤0.05dB (No additional attenuation after test). |
|
Crush |
IEC 60794-1-2-E3 Load: according to above table, three points Duration time: 10min |
Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements |
|
Water Penetration |
IEC 60794-1-2-F5B Time : 1 hour Sample length: 0.5m Water height: 1m |
No water leakage. |
|
Temperature Cycling |
IEC 60794-1-2-F1 Sample length: No less than 500m Temperature range: -40℃ to +65℃ Cycles: 2 Temperature cycling test dwell time: 12h |
The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm. |
