Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer

Negotiable
MOQ
Negotiable
Price
Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 12-72 Fibers
Fiber: G652D, G657A1, G657A2
Cable Diameter: 9-18.2mm
Bending Radius: 25 Times Cable Diameter
Package: Iron-wooden Reel
Operating Temperature: -40°C To + 70°C
Application: Telecommunication, Aerial, Telecom, Network
Certification: ISO9001/CE/ROHS
Highlight:

OPGW Optical Fiber Composite Overhead Ground Wire

,

Optical Fiber Composite Overhead Ground Wire

,

Double Layer opgw ground wire

Basic Infomation
Place of Origin: Dongguan, Guangdong, China (Mainland)
Brand Name: TW-SCIE or OEM
Certification: SGS ROHS REACH ISO
Model Number: OPGW
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 15 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 KM/per day
Product Description

 Optical Fiber Composite Overhead Ground Wire Double Layer Stranded OPGW

Product Description



Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 0

OPGW CABLE
1. High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.
2. Engineering support supervising and providing its own line of accessories hardware.
3. Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental
conditions such as lightening.
4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over
110KV.
5. Apply to the transformation of old lines.
Parameters








No. of Core
2-42
44-72
74-84
86-96
98-108
110-120
122-132
134-144
OD(mm)
10.4
11.2
12.2
14.0
14.8
15.8
16.6
17.4
Cable Weight(kg/km
90
100
115
180
195
220
240
265

Details Images

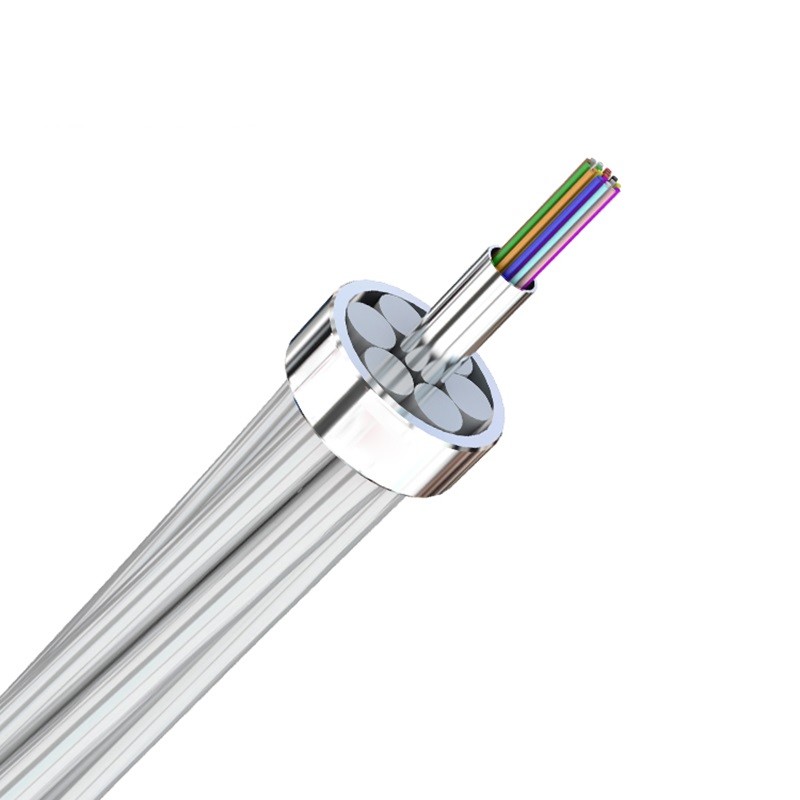

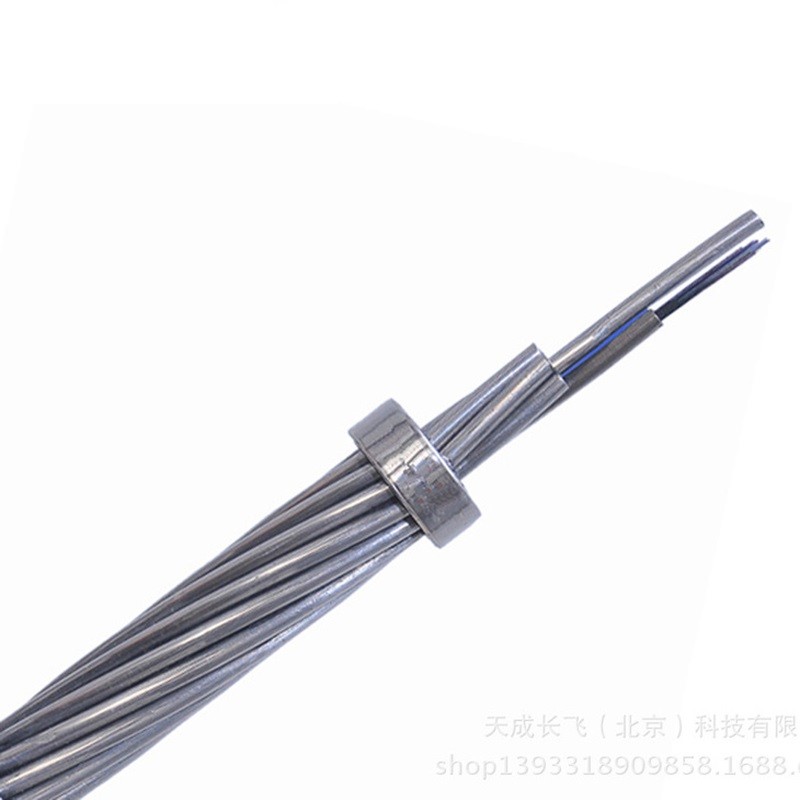

Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 1
Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 2
Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 3
Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 4
Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 5


Packing & Shipping





Standard Packaging

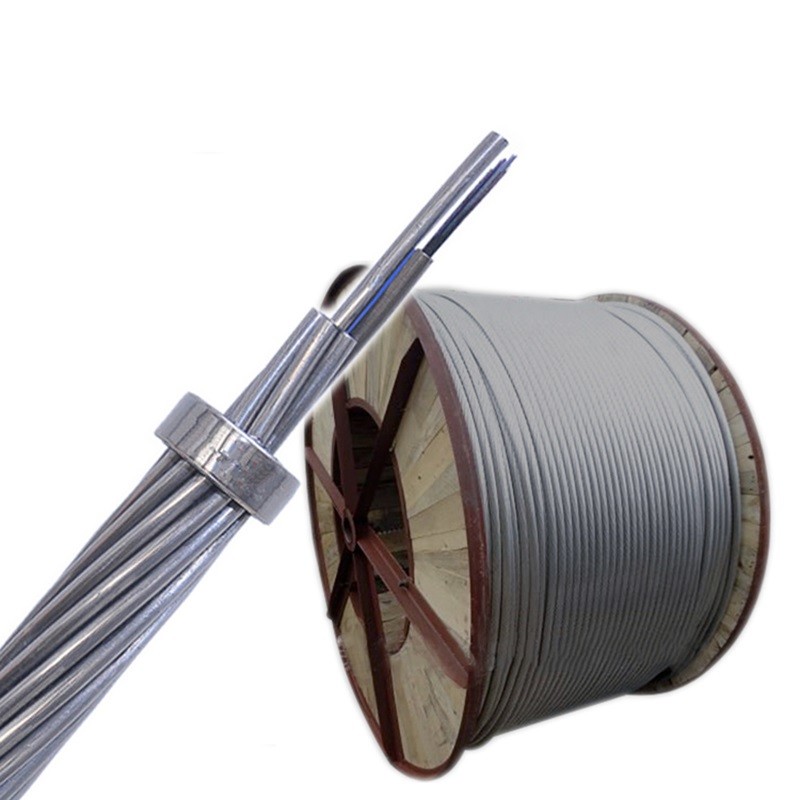

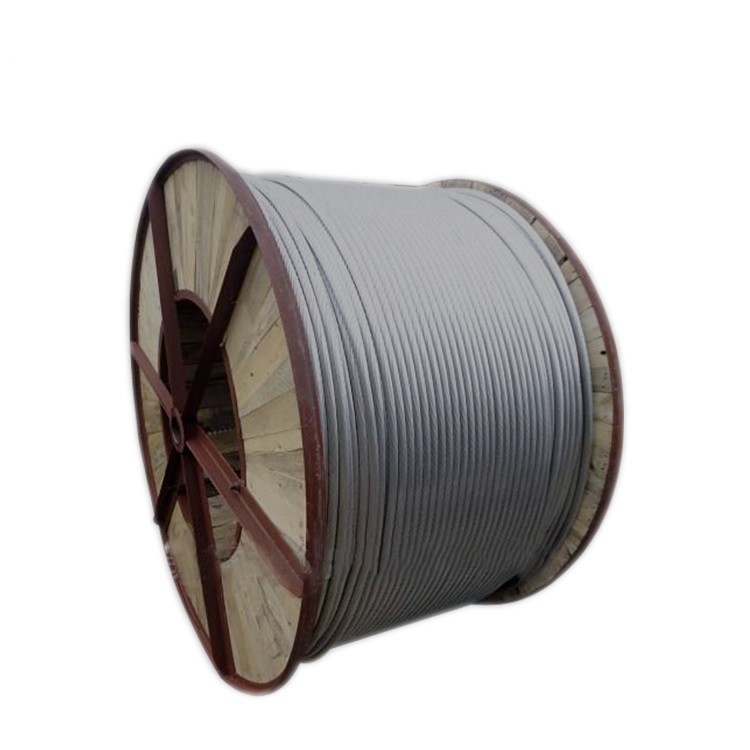

Wooden Drums. 2000m to 6000m/drum



Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 6



Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 7



Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 8


Company Profile

Dongguan TW-SCIE Co., Ltd. is specialized in developing, manufacturing and selling of optical fiber communications products and integrates with independent import and export rights high-tech enterprises.

Dongguan TW-SCIE Co., Ltd is a high-tech enterprise group in China devoted to communications undertakings with our own importers and exporters rights.

Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 9

Stranded OPGW Optical Fiber Composite Overhead Ground Wire Double Layer 10
