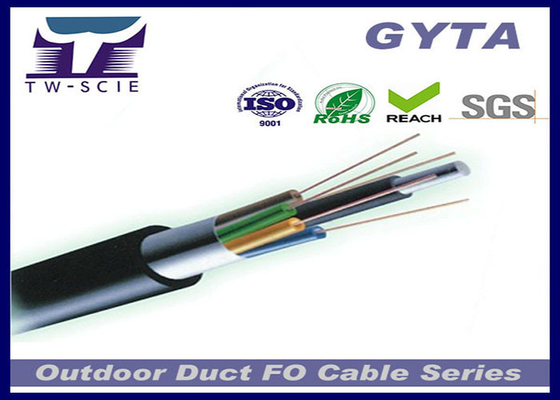

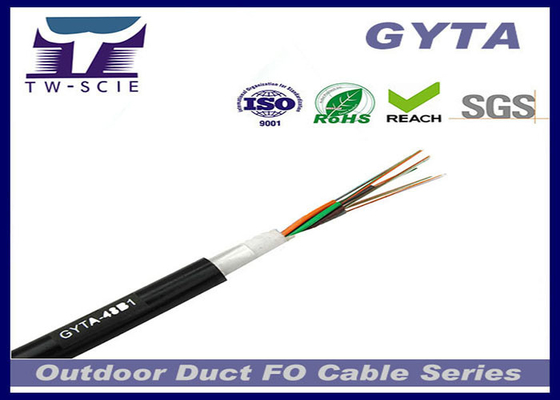

GYTA SM Layer Stranded Fiber Optical Cable
Recommended laying methods
Aerial, Duct

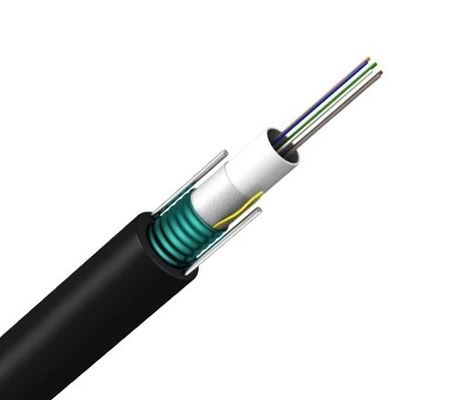

Structure Characters
Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
Properties
Corrugated aluminium tape providing an excellent moisture barrier
Appicable fieds
Long-distance communication, LAN
Moisture-proof and rodent-proof
Technical data: | ||||||||
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
Static | Dynamic | Short term | Long term | Short term | Long term | |||
2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
32-36 | 10.3 | 115 | ||||||
38-60 | 10.7 | 115 | ||||||
62-72 | 11.3 | 140 | ||||||
74-96 | 12.9 | 175 | ||||||
98-120 | 14.4 | 210 | ||||||
122-144 | 15.8 | 245 | ||||||
146-216 | 16.3 | 260 | ||||||
218-240 | 19.5 | 345 | ||||||
242-288 | 21.7 | 415 |
