Home /Products/Outdoor Fiber Optic Cable/24 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use

24 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use

Negotiable
MOQ
Negotiable
Price
24 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use
Features Gallery Product Description Request A Quote
Features
Specifications
Outer Sheath Material: PE
Outer Sheath Color: Black
Metallic Strengthen Member: Steel Wire
Loose Tube Material: PBT Or Jelly
Single Armour Material: Corrugated Aluminium Tape
Operating Temperature: -40 Degree ~ +60 Degree
Waterblocking Material: Water Blocking Tape Or Filling Compound
Brand Name Of Fiber: Corning, Yofc, Draka, Fujikura
Messenger Material: Steel Wires
Installation Methods: Aerial & Duct
Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Type: Single Mode G652d,Outdoor Optical Cable Aerial
Fiber Count: 2-24 Cores,2-288 Core
Highlight:

24 Core Armored Fiber Optic Cable

,

Single Mode Armored Fiber Optic Cable

,

Multimode Armored Fiber Optic Cable
Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: GYTA/53
Payment & Shipping Terms
Packaging Details: Customize
Delivery Time: one week
Payment Terms: L/C, T/T, Western Union,MoneyGram
Supply Ability: 200km/Day
Product Description

                          24 Core Aluminum GYTA Fiber Optic Cable for Duct Use​

24 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use 0

GYTA Sm Layer Stranded Fiber Optical Cable

Recommended laying methods
Aerial, Duct

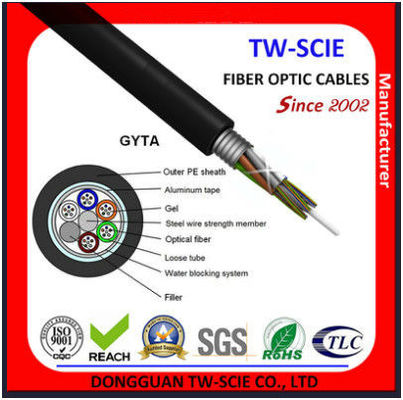

Structure Characters
Metalic strengthen member(phosphated steel wire)

Double coated PE Crrugated steel tape under PE sheath

Properties
Corrugated aluminium tape providing an excellent moisture barrier

Appicable fieds
Long-distance communication, LAN
Moisture-proof and rodent-proof

Technical data:
Fiber Num. Outer diameter (mm) Weight (kg/km) Min. Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.8 95 10 times O. D. 20 times O. D. 1500 600 1000 300
32-36 10.3 115
38-60 10.7 115
62-72 11.3 140
74-96 12.9 175
98-120 14.4 210
122-144 15.8 245
146-216 16.3 260
218-240 19.5 345
242-288 21.7 415

24 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use 124 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use 2

24 Core Single Mode And Multimode Armored Fiber Optic Cable For Duct And Outdoor Use 3
