Self Supporting 12 Core Outdoor Fiber Optic Cable Excellent Mechanical Performance

Negotiable
MOQ
Negotiable
Price
Self Supporting 12 Core Outdoor Fiber Optic Cable Excellent Mechanical Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name Of Fiber: 12 Core Outdoor Fiber Optic Cable
Outer Sheath Material: MDPE / HDPE
Outer Sheath Color: Black
Loose Tube Material: PBT Or Jelly
Single Armour Material: Corrugated Aluminium Tape
Operating Temperature: -40 Degree ~ +60 Degree
Waterblocking Material: Water Blocking Tape Or Filling Compound
Installation Methods: Self-Support Aerial
Structure Section: "8" Figure Cross Section
Highlight:

12 Core Outdoor Fiber Optic Cable

,

Self Supporting Outdoor Fiber Optic Cable

,

Mechanical Performance Outdoor Fiber Optic Cable
Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: GYTC8s
Payment & Shipping Terms
Packaging Details: Customize
Delivery Time: one week
Payment Terms: L/C, T/T, Western Union,MoneyGram
Supply Ability: 200km/Day
Product Description

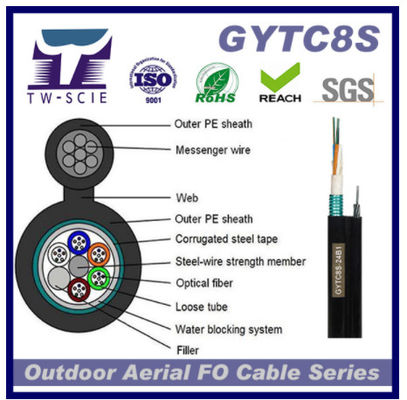

GYTC8s Outdoor Self-Support 12 Core Fiber Optic Cable




Application:

☆.Adopted to outdoor distribution.

☆.Suitable for aerial duct and buried method.
☆.Long distance and local area network communication.



Characteristics:

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.
☆.Fiber count: 2-24 cores.



Fiber Allocation Scheme

Fiber number Tube number Fiber per tube Fiber type
2 1 2 F/Tube SM G652D MM 50/125 MM 62.5/125
4 1 4 F/Tube
6 1 6 F/Tube
8 1 8 F/Tube
12 1 12 F/Tube
24 1 24 F/ Tube



Cable Construction Details

Items Description
Number of fiber 2 cores to 24cores
Connector strength member Material Galvanized steel wire
diameter 1.2 mm
Loose tube material PBT
diameter Ф2.0-2.8
Cable filling material Cable filling compound
Outer sheath material HDPE
diameter 1.7±0.2mm

Cable Mechanical Characteristic

Items Cable diameter Weight
2 cores to 24 cores 3.2*7.2 mm 70 kg/km
Installation Temperature range -15--+60
Operation and transport temperature -40-+70
Rec.daily max working tension 1500 N
Max. Allowable working tension 600 N
Min Bending Radius(mm) operation 10D mm
installation 20D mm
Extra load 0.5%-0.7%
Ice 5mm
Wind speed 35m/s



Fiber Characteristic



Fiber style Unit SM G652D MM 50/125 MM 62.5/125
condition nm 1310/1550 850/1300 850/1300
attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Dispersion 1310nm Ps/(nm*km) ≥-3.4 ≤3.4 ..... .....
1550nm Ps/(nm*km) ≤18 ..... .....
1625nm Ps/(nm*km) ≤22
Bandwidth 850nm MHZ. KM ..... >=400 >=160
1300nm MHZ. KM ..... >=800 >=500
Zero dispersion wavelength nm >=1302,≤1322 ..... .....
Zero dispersion slope Ps(nm2*km) ≤0.091 ..... .....
PMD Maximum Individual Fiber Ps√km ≤0.2 ..... .....
PMD Design Link Value Ps√km ≤0.08 ..... .....
Fibre cutoff wavelength λc nm >=1180,≤1330 ..... .....
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 ..... .....
1550nm um 10.4±0.8 ..... .....
Numerical Aperture(NA)   ...... 0.200±0.015 0.275±0.015
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.10 ≤0.10
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.10 ≤0.10
Difference backscatter coefficient dB/km ≤0.03 ≤0.08 ≤0.10
Attenuation uniformity dB/km ≤0.01 ....... .......
Core diameter um ...... 50±1.0 62.5±2.5
Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5
Curl(radius) um ≤4 ..... .....
Tag: self-supporting cable, figure 8, 24 core.
