Double Armoured Outdoor Fiber Optic Cable GYTA53 Single Mode Compact Structure

Negotiable
MOQ
Negotiable
Price
Double Armoured Outdoor Fiber Optic Cable GYTA53 Single Mode Compact Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Outer Sheath Material: PE
Outer Sheath Color: Black
Metallic Strengthen Member: Steel Wire
Loose Tube Material: PBT Or Jelly
Single Armour Material: Corrugated Aluminium Tape
Operating Temperature: -40 Degree ~ +60 Degree
Waterblocking Material: Water Blocking Tape Or Filling Compound
Messenger Material: Steel Wires
Installation Methods: Aerial &Duct
Highlight:

Outdoor Fiber Optic Cable GYTA53

,

GYTA53 Single Mode fiber optic cable

,

GYTA53 Armoured Outdoor Fiber Optic Cable
Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: Outdoor Double Armoured Optic Fiber Cable
Payment & Shipping Terms
Packaging Details: Customize
Delivery Time: one week
Payment Terms: L/C, T/T, Western Union,MoneyGram
Supply Ability: 200km/Day
Product Description

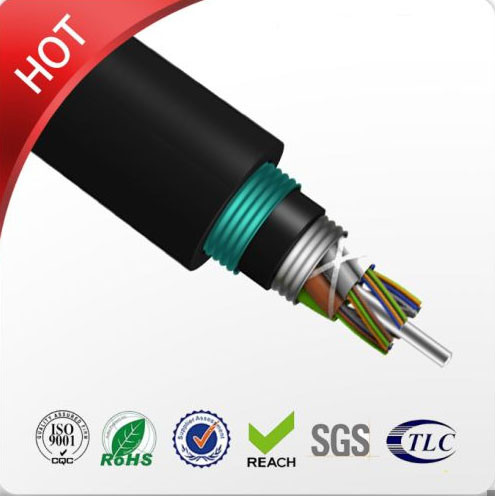

Double Armoured Outdoor Fiber Optic Cable GYTA53 Single Mode Compact Structure





Cable Description from inside to outside:


1. fiber

2. Steel-wire strengthen member

3. loose tube

4. inner sheath

5. water blocking system

6. filling compound

7. corrugated steel tape

8. outsheath


Application


1. Outdoor direct-buried or duct distribution.
2. Long distance and local area network communication.

Characteristics


1. Steel tape strengthen.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.
7. Double sheath.



Cable construction details :
Items Description
Number of fiber 2-288cores
Fiber type G652D/G657A/OM1/OM2/OM3/OM4
diameter 250µm
Strength member materia Steel tape and E-glass
Inner sheath material PE
diameter /
Outer sheath material PE
diameter 12.5~16.5mm
Cable size (Height * width) /
Cable weight 155~255KG±1KG
Installation Temperature range(ºC) -20+60
Operation and transport temperature(ºC) -40+70
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 3000
Min allowable
Tensile Strength(N)		 Short term 4000
Crush Load (N/100mm) Long term 300
Crush Load (N/100mm) short term 1000


Standard color of fiber and tube

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- >=400 >=160 Bandwith
1300nm MHZ.KM ---- ---- >=800 >=500
Zero dispersion wavelength nm 1300-1324 >=1302,
≤1322		 ---- ---- >= 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr   ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm >= 1180,
≤1330		 >=1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		   ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um     50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----



Tag:

outdoor armored fiber optic cable

fiber optic network cable

outdoor fiber cable
