24 Fiber Multimode Fan-out Indoor Breakout Fiber Optic Cable with High Strength
Mulit Purpose Distribution Cable use simplex cable (φ900μm tight buffer, aramid yarm as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallics strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Feature
1.Stranded non-metallic strength member structure ensure the cable endure large tensile strength.
2.The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
3.Storage Operating Temperature: -20ºC~+60ºC, Installation Temperature: -5ºC~+50ºC.
Application
1.Indoor cable distribution.
2.For intra-building backbone cabling including floors, terminal boxex and work stations.
3.For short and middle distance direct terminals intra-buildings and within different buildings, each sub-cable unit can be directly connected by standard connector.
Fiber Parameters
| No. |
Items |
Unit |
Specification |
| G.652D |
| 1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
| 1550nm |
μm |
10.4±0.5 |
| 2 |
Cladding Diameter |
μm |
124.8±0.7 |
| 3 |
Cladding Non-Circularity |
% |
≤0.7 |
| 4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
| 5 |
Coating Diameter |
μm |
245±5 |
| 6 |
Coating Non-Circularity |
% |
≤6.0 |
| 7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
| 8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
| 9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.4 |
| 1550nm |
dB/km |
≤0.3 |
Cable Parameters
| Items |
Specifications |
| Fiber Count |
2-48 |
| Tight-buffered Fiber |
Dimension |
850µm±50µm |
| Material |
PVC |
| Color |
White |
| Simplex Cable |
Dimension |
1.9mm±0.1mm |
| Material |
LSZH |
| Color |
Yellow |
| Strength Member |
Kevlar |
| Printing Marks |
(1)-(48) |
| Central Strength Member |
Diameter |
3.8mm±0.1mm |
| Material |
FRP+LSZH |
| Color |
Yellow |
|
Outer Jacket
|
Dimension |
14.5mm±0.5mm |
| Material |
LSZH |
| Color |
Yellow |
Mechanical and Environmental Characteristics
| Items |
Unite |
Specifications |
| Tension(Long Term) |
N |
600 |
| Tension(Short Term) |
N |
1500 |
| Crush(Long Term) |
N/10cm |
300 |
| Crush(Short Term) |
N/10cm |
1000 |
| Min. Bend Radius(Dynamic) |
mm |
20D |
| Min. Bend Radius(Static) |
mm |
10D |
| Installation Temperature |
ºC |
-10~+50 |
| Operating Temperature |
ºC |
-20~+60 |
| Storage Temperature |
ºC |
-20~+60 |
Technical Parameter
| Geometical Characteristics |
| Fiber Count |
4 |
6 |
8 |
12 |
16 |
18 |
24 |
| Break-out Cable Diameter (mm) |
7.5 |
8.5 |
10 |
12.5 |
12.5 |
12.5 |
14.5 |
| Break-out Cable Weight (kg/km) |
45 |
62 |
84 |
138 |
150 |
158 |
202 |
| TBF Diameter (μm) |
900±50 |
| Mechanical Characteristics |
|
| Max Lood (N) |
Long term |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
| Short term |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
| Bending Radius (mm) |
Dynamic |
20*D (D: Cable Diameter) |
| Static |
10*D (D: Cable Diameter) |
| Fiber |
| Fiber type (core/ cladding dimension) |
9/125 50/125 62.5/125 |
| Transmission Characteristics |
| |
SM
(1310/1550 nm)
|
50/125
(850/1300 nm)
|
62.5/125
(850/1300nm)
|
| Max Attenuation (dB/km) |
0.45/0.30 |
3.5/1.5 |
3.5/1.5 |
| Typical Attenuation (dB/km) |
0.40/0.25 |
3.1/1.0 |
3.0/1.0 |
| Mini Bandwidth (Mhz.km) |
-- |
400/400 |
160/500 |

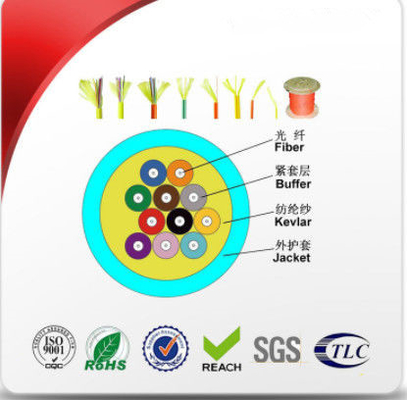

Product Structure
Packing & Shipping
