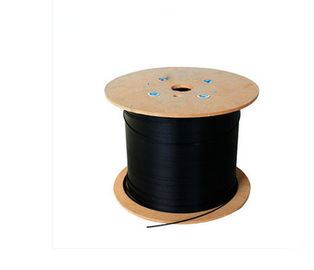

LSZH/PVC Jacket 1 2 4 Core Single Mode FRP Strength GJXFH Flex Durable FTTH Drop Cable
This FTTH Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.
Applications
1.Indoor wiring system
2.FTTH, terminal system
3.Indoor shaft, building wiring
Properties
1. Bow-tie type cross-section design, LSZH or PVC jacket
2. Two parallel FRP as strength member to protect the fiber and provide adequate tension and pressure
3. Flex durable fiber to provide greater bandwidtj and enhance network transmission characteristics
4. Easy pleeled off, light weight, small size, unique groove design, easy for maintance
Technical Date
ITEMS |
UNITS |
SPECIFICATION |
| Attenuation |
dB/km |
≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion |
ps/nm.km |
≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength |
nm |
1300 ~ 1324 |
| Zero Dispersion Slope |
ps/nm2.km |
≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) |
nm |
≤1260 |
| Mode Field Diameter |
um |
9.2±0.5 |
| Mode Field Concentricity |
um |
≤0.8 |
| Cladding Diameter |
um |
125±1.0 |
| Cladding Non-circularity |
% |
≤1.0 |
| Coating cladding concentricity error |
um |
≤12.5 |
| Coating Diameter |
um |
245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn |
dB |
≤0.5 at 1550nm |
| Proof Test |
kpsi |
≥100
|
Our Company
Dongguan TW-SCIE Co., Ltd. is a high-tech enterprise specializing in the research and development, production, processing, sales and network engineering of optical fiber communication products, and has independent import and export rights. The company has a group of loyal, dedicated, wise, strong professional and technical talents, committed to tracking the world's advanced optical communication products development and application. The company R & D, production, management of the main products are optical fiber, optical cable, optical transceiver, optical MODEM and so on. Products are widely used in communication, electric power, railway, military and other related departments, exported to France, India, Singapore, Malaysia and other countries.
Our Certificates
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
