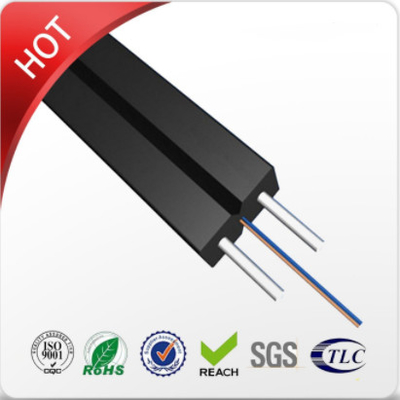

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network

Negotiable
MOQ
Negotiable
Price
Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name Of Fiber: Corning ,Yofc,Draka, Fujikura...as Requirement
Color Of Loose Tube: Blue, Orange, Green, Brown
Strength Member: Steel Or FRP
Jacket Color: Black, White
Installation Style: Indoor & Outdoor Self-Support Drop Cable
Cable Dimension: 3.1*2.0mm
Cable Weight: 8.2kg/Km
Highlight:

fiber drop cable

,

aerial fiber optic cable
Basic Infomation
Place of Origin: DONG GUAN CHINA
Brand Name: TW
Certification: SGS ROHS REACH ISO
Model Number: LSZH Sheath FTTH Optical Fiber Cable
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000KM/mouth
Product Description

LSZH Sheath FTTH Optical Fiber Cable with Steel Wire FRP Strengthen




Application


1. Adopted to indoor cabling system.
2. As pigtail of communication equipment.

3. Suitable for floor connection.




Characteristics


1. 250um Fiber.
2. FRP/KFRP.
3. LSZH sheath.




Cable construction details



Items Description
Number of fiber 2-24cores
Fiber type G652D/G657A/Multimode
diameter 250µm
Strength member materia Kevlar yarn
Loose tube diameter 0.9-1.2mm
material /
Outer sheath material PVC/LSZH
diameter 1.6*2.0-3.0*6.0mm
Cable size (Height * width) /
Cable weight 5.5-28.5KG
Installation Temperature range(ºC) -20+60
Operation and transport temperature(ºC) -40+70
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 40
Min allowable
Tensile Strength(N)		 Short term 80
Crush Load (N/100mm) Long term 200
Crush Load (N/100mm) short term 1000


Standard color of fiber and tube

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- >=400 >=160 Bandwith
1300nm MHZ.KM ---- ---- >=800 >=500
Zero dispersion wavelength nm 1300-1324 >=1302,
≤1322		 ---- ---- >= 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr   ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm >= 1180,
≤1330		 >=1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		   ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um     50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----


 Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 0



Packing & Shipping



Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 1

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 2





Company Profile



Dongguan TW-SCIE Co., Ltd. is a high-tech enterprise specializing in the research and development, production, processing, sales and network engineering of optical fiber communication products, and has independent import and export rights. The company has a group of loyal, dedicated, wise, strong professional and technical talents, committed to tracking the world's advanced optical communication products development and application. The company R & D, production, management of the main products are optical fiber, optical cable, optical transceiver, optical MODEM and so on. Products are widely used in communication, electric power, railway, military and other related departments, exported to France, India, Singapore, Malaysia and other countries.

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 3

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 4

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 5

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 6

Black / White Jacket With Steel Wire FRP Strengthen Fiber Optic Ethernet Cable For Home Network 7


Our advantages


1. High- integrity enterprise ( 90% regular customers).
2. Good quality with EXW price (A professional manufacturer).
3. Shortest delivery time (1000km FTTH just need 1 day).
4. QC: ISO 9002, ROHS, REACH.
5. MOQ is 1KM.
6. Exclusive testing laboratory costed 3,000,000RMB
7. Free samples provided.
8. Customized.



Solving your problem is our priority, pls feel free to contact us !
