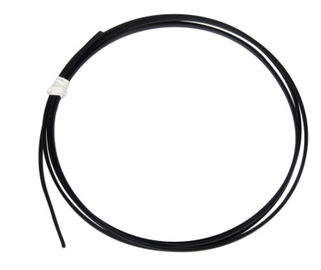

balck LSZH Sheath Optical Fiber Cable with Steel Wire FRP Strengthen FTTH
Application
1. Adopted to indoor cabling system.
2. As pigtail of communication equipment.
3. Suitable for floor connection.
Characteristics
1. 250um Fiber.
2. FRP/KFRP.
3. LSZH sheath.
Cable construction details
| Items |
Description |
| Number of fiber |
2-24cores |
| Fiber |
type |
G652D/G657A/Multimode |
| diameter |
250µm |
| Strength member |
materia |
Kevlar yarn |
| Loose tube |
diameter |
0.9-1.2mm |
| material |
/ |
| Outer sheath |
material |
PVC/LSZH |
| diameter |
1.6*2.0-3.0*6.0mm |
| Cable size (Height * width) |
/ |
| Cable weight |
5.5-28.5KG |
| Installation Temperature range(ºC) |
-20+60 |
| Operation and transport temperature(ºC) |
-40+70 |
| Min Bending Radius(mm) |
Long term |
10D |
Min Bending
Radius(mm) |
Short term |
20D |
Min allowable
Tensile Strength(N) |
Long term |
40 |
Min allowable
Tensile Strength(N) |
Short term |
80 |
| Crush Load (N/100mm) |
Long term |
200 |
| Crush Load (N/100mm) |
short term |
1000 |
Standard color of fiber and tube
| Fiber style |
Unit |
SM
G652 |
SM
G652D |
MM
50/125 |
MM
62.5/125 |
MM
OM3-300 |
| condition |
nm |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
| attenuation |
dB/km |
≤ |
≤ |
≤ |
≤3.0/1.0 |
≤3.0/1.0 |
| 0.36/0.23 |
0.34/0.22 |
3.0/1.0 |
---- |
---- |
| Dispresion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
---- |
---- |
Dispresion |
| 1625nm |
Ps/(nm*km) |
---- |
≤22 |
---- |
---- |
|
| Bandwith |
850nm |
MHZ.KM |
---- |
---- |
>=400 |
>=160 |
Bandwith |
| 1300nm |
MHZ.KM |
---- |
---- |
>=800 |
>=500 |
|
| Zero dispersion wavelength |
nm |
1300-1324 |
>=1302,
≤1322 |
---- |
---- |
>= 1295,
≤1320 |
| Zero dispresion slope |
nm |
≤0.092 |
≤0.091 |
---- |
---- |
---- |
| PMD Maximum Individual Fibr |
|
≤0.2 |
≤0.2 |
---- |
---- |
≤0.11 |
| PMD Design Link Value |
Ps(nm2*k
m) |
≤0.12 |
≤0.08 |
---- |
---- |
---- |
| Fibre cutoff wavelength λc |
nm |
>= 1180,
≤1330 |
>=1180,
≤1330 |
---- |
---- |
---- |
Cable sutoff
wavelength λcc |
nm |
≤1260 |
≤1260 |
---- |
---- |
---- |
| MFD |
1310nm |
um |
9.2+/-0.4 |
9.2+/-0.4 |
---- |
---- |
---- |
| 1550nm |
um |
10.4+/-0.8 |
10.4+/-0.8 |
---- |
---- |
---- |
Numerical
Aperture(NA) |
|
---- |
---- |
0.200+/
-0.015 |
0.275+/-0.
015 |
0.200+/-0
.015 |
Step(mean of bidirectional
measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
Irregularities over fiber
length and point |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
| |
|
|
|
|
|
|
|
| Dicontinuity |
Difference backscatter
coefficient |
dB/km |
≤0.05 |
≤0.03 |
≤0.08 |
≤0.10 |
≤0.08 |
| Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
|
|
|
| Core dimater |
um |
|
|
50+/-1.0 |
62.5+/-2.5 |
50+/-1.0 |
| Cladding diameter |
um |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242+/-7 |
242+/-7 |
242+/-7 |
242+/-7 |
242+/-7 |
Coating/chaffinch
concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
| Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
| Core/cladding conentricity error |
um |
≤0.6 |
≤0.6 |
≤1.5 |
≤1.5 |
≤1.5 |
| Curl(radius) |
um |
≤4 |
≤4 |
---- |
---- |
---- |
