Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension

Negotiable
MOQ
Negotiable
Price

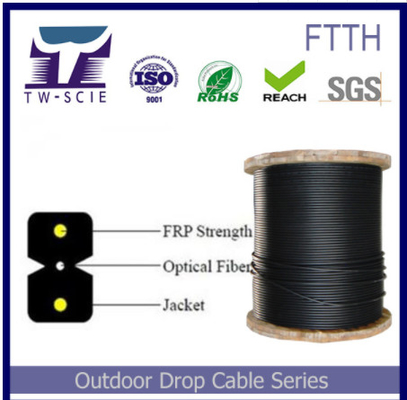

Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name Of Fiber: Corning ,Yofc,Draka, Fujikura...as Requirement
Color Of Loose Tube: Blue, Orange, Green, Brown
Strength Member: Steel Or FRP
Jacket Color: Black, White
Installation Style: Indoor & Outdoor Self-Support Drop Cable
Cable Dimension: 3.1*2.0mm
Cable Weight: 8.2kg/Km
Highlight:

fiber drop cable

,

ftth aerial drop cable

Basic Infomation
Place of Origin: DONG GUAN CHINA
Brand Name: TW
Certification: SGS ROHS REACH ISO
Model Number: Indoor FTTH
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000KM/mouth
Product Description

1 Core FTTH Drop Cable with PVC / LSZH Jacket, Self-Supporting Fiber Optic Cable



This FTTH 2 Core Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.



Structure &Properties


1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients



Technical Date




ITEMS
UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100



Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 0
Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 1





Packing & Shipping



Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 2Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 3




Company Profile



Dongguan TW-SCIE Co., Ltd. is a subsidiary of Tewang Group. It was established in 2002. Since its establishment, the company has been adhering to the concept of "continuous innovation and pursuit of excellence", and has been committed to the research and development of optical fiber communication products and market expansion for a long time. Through unremitting efforts, it has developed into a comprehensive high-tech enterprise integrating R&D, production, sales and network engineering of optical fiber communication products. We rely on advanced equipment, mature technology and strict management to provide users with high-quality products and perfect pre-sales, sales and after-sales services. Relying on the tenet of "survive by quality, develop by innovation" and good reputation, the company has established strategic partnerships with many operators at home and abroad. The company currently has three series of products: optical cables, optical passive components, and optical fiber transceivers, which can provide customers with one-stop services.



Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 4

Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 5

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 6

Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 7

Self Supporting FTTH Fiber Cable Steel Or FRP Strength Member 3.1*2.0mm Dimension 8



Our Quality & Service


DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers
.

WE LOOK FORWARD TO HEARING FROM YOU !
