Name: Light Weight GYXTW Outdoor Fiber Optic Cable With Unitube Light Armored Structure
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GYXTW
Price: 114.10 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Outer Sheath Material: MDPE / HDPE

Outer Sheath Color: Black

Loose Tube Material: PBT Or Jelly

Single Armour Material: Corrugated Aluminium Tape

Operating Temperature: -40 Degree ~ +60 Degree

Waterblocking Material: Water Blocking Tape Or Filling Compound

Installation Methods: Duct & Burial

Highlight:

GYXTW Outdoor Fiber Optic Cable

Outdoor Fiber Optic Cable Unitube Armored

gyxtw fiber optic cable Armored

Basic Infomation

Place of Origin: DongGuan TW

Brand Name: TW-SCIE

Certification: ROHS REACH SGS ISO

Model Number: GYXTW

Payment & Shipping Terms

Packaging Details: Customize

Delivery Time: one week

Payment Terms: L/C, T/T, Western Union,MoneyGram

Supply Ability: 200km/Day

Gallery

Light Weight GYXTW Outdoor Fiber Optic Cable With Unitube Light Armored Structure

Product Description

Light Weight GYXTW Outdoor Fiber Optic Cable With Unitube Light Armored Structure

·Description

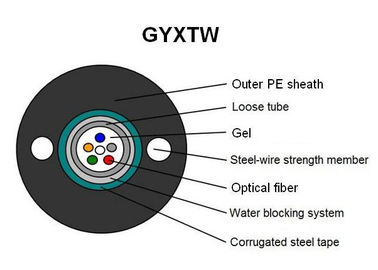

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

·Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
·Standards
GYXTW cable complies with Standard YD/T 769-2003.
·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

·Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GY XTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC

Optic Cable Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-12	8.9	90	10 times O.D.	20 times O.D.	1500	600	1000	300
14-24	10.2	110
