GYTA Loose Tube Stranded Optical Fiber Cable with Steel Type Armored
Appicable fieds
1.Long-distance communication, LAN
2.Moisture-proof and rodent-proof
Characteristics
1.Corrugated aluminum tape offers high tension and crush resistance.
2.Special gel in the tube offers ceitical protection for fibers
3.With steel wire central strength member
4.Anti-UV PE jacket
5. Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span.
Technical data
| Fiber Num. |
Outer diameter (mm) |
Weight (kg/km) |
Min. Bending radius(mm) |
Tension (N) |
Crash loading (N/100mm) |
| Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
| 2-30 |
9.8 |
95 |
10 times O. D. |
20 times O. D. |
1500 |
600 |
1000 |
300 |
| 32-36 |
10.3 |
115 |
| 38-60 |
10.7 |
115 |
| 62-72 |
11.3 |
140 |
| 74-96 |
12.9 |
175 |
| 98-120 |
14.4 |
210 |
| 122-144 |
15.8 |
245 |
| 146-216 |
16.3 |
260 |
| 218-240 |
19.5 |
345 |
| 242-288 |
21.7 |
415 |
| GYTA Aluminium Tape Armored G652D Fiber Optic Cable for Duct or Aerial Application |
| |
| Description and Standards : |

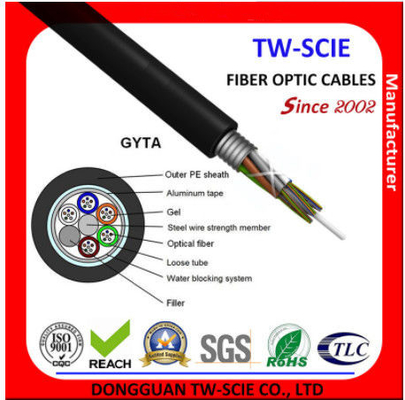

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with
a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable
with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are
stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene
Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it
from water ingress. Then, the cable is completed with a PE sheath. |
| GYTA fiber cable complies with Standard YD/T 901-2001as well as IEC 60794-1. |
| Characteristics: |
| Good mechanical and temperature performance; |
| High strength loose tube that is hydrolysis resistant; |
| Special tube filling compound ensure a critical protection of fiber; |
| Specially designed compact structure is good at preventing loose tubes from shrinking; |
| PE sheath protects cable from ultraviolet radiation; |
| The following measures are taken to ensure the cable watertight: |
| (1)Steel wire used as the central strength member; |
| (2)Loose tube filling compound; |
| (3)100% cable core filling; |
| (4)APL moisture barrier. |
