Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY

5km
MOQ
Negotiable
Price
Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY
Features Gallery Product Description Request A Quote
Features
Specifications
Model No: GYFTY
Outer Sheath Material: PE
Central Strength Member: Non-Metallic
Filler: Filling Compound
Fiber Count: 2-288 Core
Brand Name Of Fiber: Corning ,Yofc,Draka,Fujikura Or As Your Requiremen
Waterblocking Material: Water Blocking Tape Or Filling Compound
Installation Style: ,Aerial
Loose Tube Material: PBT With Jerry
Highlight:

fiber optic ethernet cable

,

multimode fiber optic cable

Basic Infomation
Place of Origin: China(mainland)
Brand Name: TW
Certification: RoHs,Reach ISO9001
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: customized
Delivery Time: 1week
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100km/day
Product Description

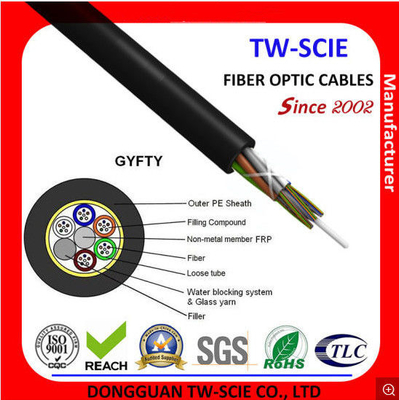

2-288 Core outdoor Loose Tube Stranding Non-Armored Dielectric Fiber Optical Cable GYFTY



This GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable are suitable for outdoor aerieal installation. Non-metallic structure with Amaid Yarn messager makes GYFTY Factory Price Non-metallic Aerial Fiber Optic Cable reduce itself gravity.





Applicable Fields


1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.





Cable Sheath Marking



Each cable have the following information clearly marked on the outer jacket of cables:

a. Name of manufacturer.

b. Year of manufacturer

c. Type of cable and fiber

d. Length mark (printing on each meter normally)

e. Or as customer’s requirements.





General Specification



Cable Type GYFTY
Fiber Type G652D
Application Long-distance communication, LAN
Recommended installation methods Aerial
Environment Outdoor
Temperature Range -40 to 70℃



Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 0



Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber
Optical Characteristics
Mode field diameter (MFD)

1310nm

1550nm

9.2±0.4

10.4±0.8

µm

µm

Cut-off wavelength (λcc)   ≤1260 nm
Attenuation coefficient

1310nm

1383nm

1550nm

<0.35

<0.35

<0.22

dB/km

dB/km

dB/km

Macro bending loss φ75mm, 100circles, at 1550nm ≤0.1 dB
Attenuation non-uniformity   ≤0.05 dB
Dispersion coefficient

1288~1339nm

1271~1360nm

1550nm

≤3.5

≤5.3

18

Ps/(nm.km)

Ps/(nm.km)

Ps/(nm.km)

Zero dispersion wavelength   1300~1324 nm
Max zero dispersion slope   ≤0.093 Ps/(nm2.km)
Group index of refraction (typical value)

1310nm

1550nm

1.466

1.467


Geometric characteristic
Cladding diameter   125.0±1.0 µm
Core/cladding concentricity error   ≤0.8 µm
Cladding non-circularity   1.0 %
Coating diameter   245.0±10 µm
Cladding/coating concentricity error   ≤12.0 µm
Coating non-circularity   ≤8 %
Diameter of colored coating   250.0±15 µm
Mechanical characteristic
Curling (radius)   ≥4 m
Proof stress   >0.69 Gpa
Coating strip force

Average value

Peak value

1.0-5.0

1.3-8.9

N

N

Dynamic stress corrosion susceptibility parameter (nd value)   ≥20



Item Testing Test Method Test Result
1

Tensile strength

IEC 60794-1-E1

Long term: 600N

Short term: 1500N

Cable length: ≥50m

Loss change≤0.1dB@1550nm

No fiber break and no sheath damage

2

Impact

IEC 60794-1-E4

Height: 1m

Weight: 1kg

Impact spot: ≥5

Impact cycle: at lease 3 cycle per spot

Loss change≤0.1dB@1550nm

No fiber break and no sheath damage

3

Repeated Bending

IEC 60794-1-E6

Bending diameter: 25X the cable outer diameter

Applied load: 25kg

Bending cycle: 30times

Bending speed: 1 cycle per 2s

Loss change≤0.1dB@1550nm

No fiber break and no sheath damage

4

Torsion

IEC 60794-1-E7

Torsion length: 1m

Applied load: 25kg

Torsion angle: ±90 or +180

Twist cycle: ≥10 times

Loss change≤0.1dB@1550nm

No fiber break and no sheath damage

5

Water Penetration

IEC 60794-1-F5B

Water height: 1m

Cable length: 3m

Keeping time: 24hours

No water leaked from the opposite end of cable
6

Temperature

IEC 60794-1-F1

Temperature step:+20°C->-40°C°C >+70°C->+20°C

Keeping time: 24hours per each step

Cycle:2times

Loss change≤0.1dB@1550nm

No fiber break and no sheath damage

7

Compound flow

IEC 60794-1-E14

Sample length: 30cm
Temperature: 70℃±2℃

Keeping time: 24hours

No compound flow
8 Sheath high voltage test

On line test

DC 12t kV(t-sheath thickness mm)

No sheath broken down

Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 1



Packing & Shipping



Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 2Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 3




Company Profile



Since its establishment in 2002, Dongguan TW-SCIE Co., Ltd. has been adhering to the concept of pursuing innovation and establishing an enterprise with integrity, and has been committed to the research and development of optical fiber communication products and market expansion for a long time. Today's TW-SCIE Company has a modern office environment, advanced production equipment, and a group of high-quality scientific research and technical personnel and management personnel. Emerging high-tech enterprises with export rights. The company has passed ISO9001-2000 quality management system certification, radio and television network access certificate, high-tech enterprise, and won the "Comprehensive Quality Management Standard Enterprise" certificate issued by the Ministry of Communications and other honors. With its own strength and looking at the overall situation, TW-SCIE is gradually developing towards a modern high-tech enterprise.



Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 4

Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 5

Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 6



Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 7

Non Armored Dielectric Multi Strand Single Mode Fiber Optic Cable 2 - 288 Core GYFTY 8



Our Quality & Service


DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Please feel free to contact with us for cooperation and excellent service.
