Features

Specifications

Application: Power Transmission System. Much Thunder Areas And Highelectromagnetic Interference

Laying Methods: Aerial

Strengthen Member: FRP

Sheath Material: HDPE

Loose Tube Material: PBT And Jelly

Reinforce: Glass Or Aramid Yarn

Highlight:

GYFTY Aerial Fiber Cable

GYFTY Outdoor Strand Fiber Optic Cable

GYFTY HDPE Fiber Optic Cable

Basic Infomation

Place of Origin: China （Dongguan）

Brand Name: TW-SCIE

Certification: ROHS REACH SGS ISO

Model Number: GYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 7~10 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200km/Day

Product Description

1. Description

The type of this fiber with single-mode G652 G655 G657 or multimode with a loose tube which is made of high modulus plastic, used a water resistant filling compound for filling.
FRP locates as a central strength member .for some cable ,.the tubes ( and filers ) are stranded around the strength member into a compact and circular cable core.double sides chromium for PSP with PE as sheath .
by single or double wire for lashing installation,also with PE for outer sheath.

Application

Adopted to Outdoor distribution fiber optic cable system .
Suitable for aerial .duct pipeline, direct burried installation lashing menthod
Long distance and local area network(LAN) communication system.

2. Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PE/LSZH sheath protects cable from ultraviolet radiation
100% cable core filling

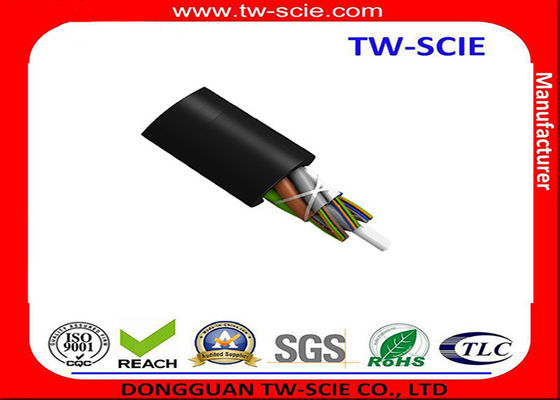

Outdoor Anti-Electromagnetism Communication GYFTY Aerial Optic Fiber

3.Specification:

Cable Count	Out sheath	Weight	Minimum allowable Tensile Strength		minimum allowable Crush Load		Minimum Bending Radius		Storage
	Diameter		(N)		(N/100mm)		(MM)		temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
2-60	9.8	65	1500	600	1000	300	20D	10D	-40+60
62-72	10.5	85	1500	600	1000	300	20D	10D	-40+60
74-96	14.5	145	1500	600	1000	300	20D	10D	-40+60
98-144	18.3	185	1500	600	1000	300	20D	10D	-40+60

Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive
		G.657(A1,A2 ,B3)		dispersion shifted single-mode fiber

Detail:

4 Structure characters:

Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.

5. Properties:

Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.

6. Applicable fields:

long-distance telecom, LAN in high-voltage area or access to telecom network

Especially for power transmission system. Much thunder areas and highelectromagnetic interference

7.Packing and Shipping

Name: GYFTY Aerial Fiber Cable Outdoor Strand Fiber Optic Cable HDPE Outer Sheath For Communicaiton Transmisson
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GYFTY
Price: 0.19 USD
Availability: InStock

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

48 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable 2

48 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable 3

8.FAQ

Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.

Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .

Q3:How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.

Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .

Q5:Do you accept the OEM order and how many is the MOQ?
A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
