GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable

Negotiable
MOQ
Negotiable
Price
GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stranded Loose Tube Non-Armoured Fiber Optic Cable
Fiber Count: 2-36 Core
Fiber Type: G652D, Single Mode, OM3
Brand Name Of Fiber: Corning, Yofc, Draka, Fujikura
Jacket: PE, MDPE, HDPE, LSZH, PVC
Outer Sheath Material Material: MDPE/HDPE
Outer Sheath Color: Black
Structure: Loose Tube
Loose Tube Material: PBT Or Jelly
Central Strength Member: FRP
Single Armour Material: Corrugated Aluminium Tape
Waterblocking Material: Water Blocking Tape Or Filling Compound
OEM: Available
Installation Methods: Aerial&Duct
Operating Temperature: -40 Degree ~ +60 Degree
Application: Telecommunication, Aerial, Duct, Telecom, Network
Highlight:

Armored Fiber Optic Ethernet Cable

,

Glass Yarn Fiber Optic Ethernet Cable

,

Multi Core Fiber Optic Ethernet Cable

Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: Drum
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union,MoneyGram
Supply Ability: 200km/Day
Product Description

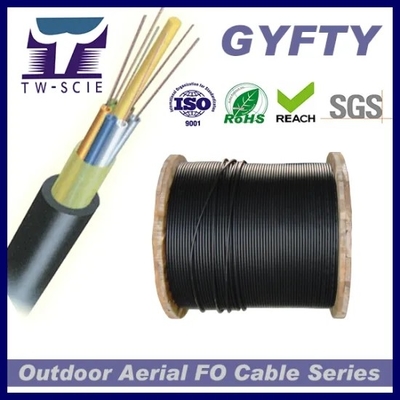

Overhead Cable Glass Yarn Armored Fiber Optic Cable (GYFTY-FS)GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 0

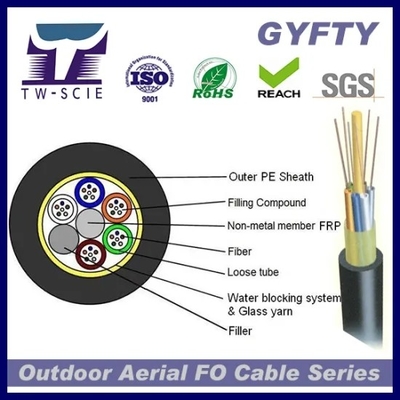

Structure characters
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath

Properties
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.

Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.

GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 1

Technical data


Technical data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-36 10.4 90 10 times O.D. 20 times O.D. 1500 600 1000 300
38-60 10.2 110
62-72 11.7 115
74-96 13.4 150
98-120 15.0 190
122-144 16.6 230
146-216 16.9 240
218-240 19.3 305
242-288 21.5 375


Packaging Detail
GYFTY Optic Fiber Cable package are wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.


GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 2GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 3


Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 4


Company Profile



Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:Optical Fiber, Optical Fiber, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 5



Our Certificate
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate


GYFTY-FS Multi Core Outdoor Aerial Glass Yarn Armored Fiber Optic Ethernet Cable 6


As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this GYFTY FRP 6/8/12/24/36/48/60/72/96/144 Core Optic Fiber Cable.
