The Cores Armored Fiber Optic Cable GYTS53 is a Direct Buried
Stranded Loose Tube Armored Cable
Description

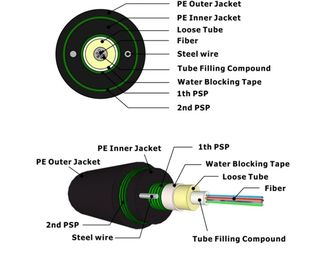

This fiber comes in single-mode types G652, G655, and G657, as well as multimode with a loose tube made of high modulus plastic and a water-resistant filling compound. It features a steel wire as a central metallic strength member, which may be sheathed with polyethylene in some cables. The tubes and filters are then stranded around the strength member to form a compact and circular cable core. The PSP is coated with double-sided chromium and has a PE sheath. Lashing installation can be done with single or double wire, and the outer sheath is made of PE.
Application
This fiber optic cable is designed for outdoor distribution systems, and it is suitable for installation by aerial, duct, pipeline, or direct burial methods, as well as lashing. It can be used for both long-distance and local area network (LAN) communication systems.
This fiber optic cable offers excellent mechanical and temperature performance, featuring a high-strength loose tube that is hydrolysis resistant. The tube filling compound provides critical protection for the fiber, and the cable is both crush-resistant and flexible. It has a PE/LSZH sheath to protect against ultraviolet radiation, and the cable core is 100% filled.
| Cable Type | GYTS53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter | Nominal Weight |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term | |||
| 4 | 9.5 | 80 | 4 | 1 | 3000 | 1000 | 3000 | 1000 |
| 12 | 9.5 | 80 | 6 | 2 | 3000 | 1000 | 3000 | 1000 |
| 24 | 9.5 | 80 | 6 | 4 | 3000 | 1000 | 3000 | 1000 |
| 96 | 14.6 | 220 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 288 | 21.6 | 310 | 12 | 24 | 3000 | 1000 | 3000 | 1000 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
.
