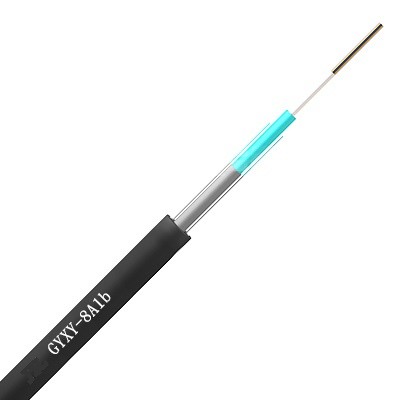

GYXY High Strength Outdoor Central Loose Tube Non-armored Fiber Optic Cable Light Weight

Description:

The structure of the GYXY optical cable is to sleeve 250µm optical fibers into a loose tube made of high modulus material. The loose tube is filled with a waterproof compound, and the loose tube is added with a water blocking material to ensure the longitudinal water resistance of the optical cable. Two parallel steel wires are placed on both sides After extruding polyethylene sheath into cable.

Features:

1. Has good mechanical properties, temperature characteristics and fire resistance characteristics
2. The loose tube material itself has good hydrolysis resistance and high strength
3. The sleeve is filled with special grease to protect the optical fiber critically
4. Two parallel steel wires ensure the tensile strength of the optical cable
5. PE sheath has good resistance to ultraviolet radiation
6. Small diameter, light weight, easy to lay
7. Long delivery length
8. Storage and use temperature -40℃ ~ +70℃

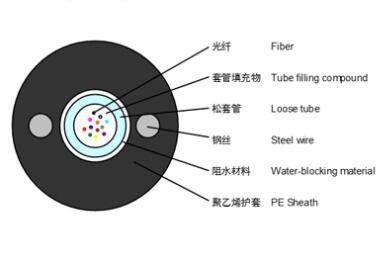

Structure:

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

1. Optical fiber in the central loose tube with filling compound,

2. Two parallel steel wire strength member

3. PE outer sheath

Specification:

Application:

Installed in duct, direct burial.
FTTX.

Standard:

YD/T 769-2010
