Description:

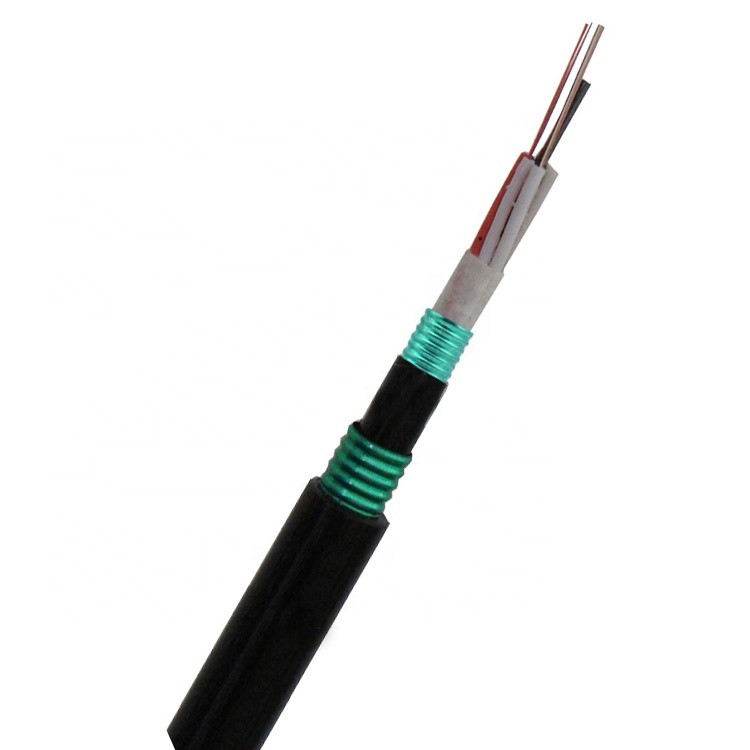

GYTS53 / GYTA53 The undeground cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core is a metal reinforcing core, and the loose tube (and the filling rope) is twisted around the central reinforcing core into a compact and round core, and the gap in the core is filled with a water-blocking filler. After the plastic coated aluminum strip (APL) or steel tape is longitudinally wrapped, a polyethylene inner sheath is extruded, and the double-sided coated steel strip (PSP) is longitudinally wrapped to extrude the polyethylene outer sheath. After being bundled with a single thin round wire, the polyethylene outer sheath is finally extruded into a cable.

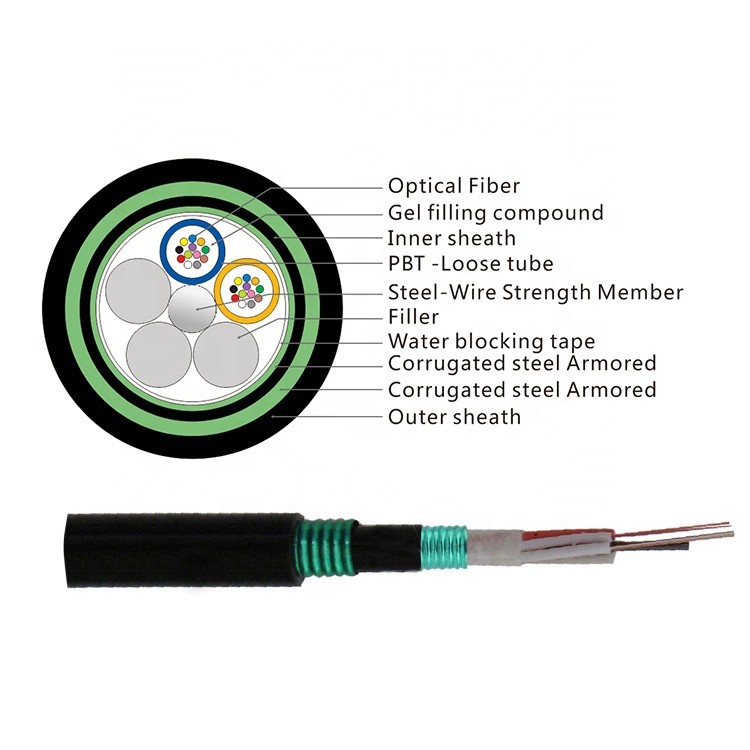

Structure:
• Single wire center reinforcement core
• The loose tube is filled with special waterproof compound
• Full core filling
• Plastic coated aluminum tape (APL) moisture barrier
• Double coated steel strip (PSP) improves the moisture resistance of the cable
• Good water blocking material prevents longitudinal leakage of cable
Features:
• Has good mechanical properties and temperature characteristics
• Single thin round wire armor makes the cable have stronger tensile properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special grease to protect the fiber
• Good pressure resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable
Specification:
| Cable Count (cores) | Tubes +Fillers | Out Sheath Diameter(mm) | Weight (kg/km) |
Min Tensile Strength ( Long/Short Term N) |
Min Crush Resistance (Long/Short Term N/100mm) |
Min Bending Radius (Static/Dynamic mm) |
| 2 ~ 36 | 6 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| 38 ~ 72 | 6 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| 74~96 | 8 | 15.9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| 98 ~120 | 10 | 18 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| 122 ~144 | 12 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| 146~288 | 18 | 20.9 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
Application:
• Direct burial
• Connecting communication equipments
• Multi-cores wiring system in data center
Standard:
YD/T901-2009
