Description:

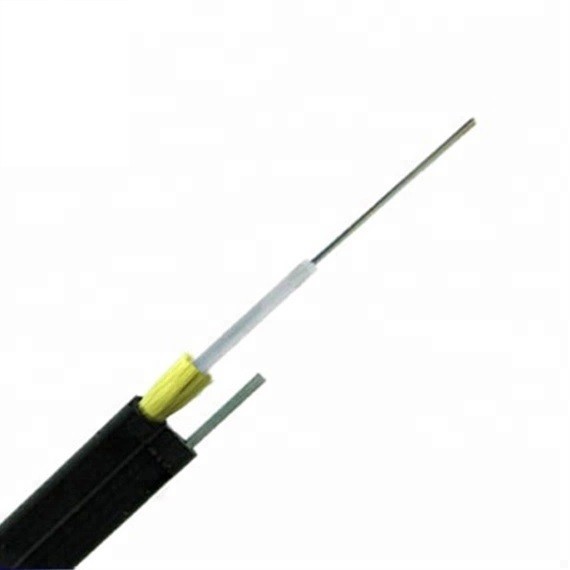

GYXTC8 is an outdoor communication figure 8 aerial-self supporting optical cable of metallic strength member of the central tube jelly-filled structure, with aramid yarn sheath.
Self-supported figure 8 optical cable with fibers placed in a unit tube, The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a aramid yarn. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

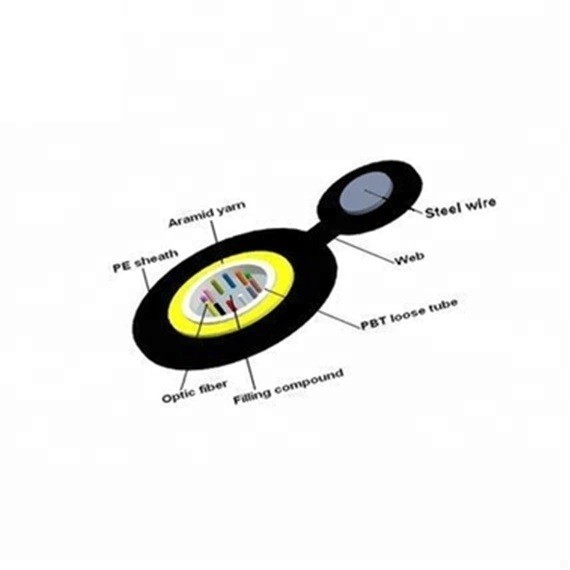

Structure:
Feature:
Specification:
|
Technical Parameters
|
||||||||
|
Cable Type
|
Fiber Count
|
Cable Diameter (mm)
|
Cable Weight (kg/km)
|
supporting wire Spec.
|
connection diameter
|
Tensile Strength
Long/Short Term(N) |
Crush Resistance
Long/Short Term (N/100mm) |
Bending Radius
Static/Dynamic (mm) |
|
GYXTC8S
|
2~12
|
7.65*14.5
|
118
|
φ1.0mm*7 stranded wire
|
H*W 3.0*2.5 mm
|
1000/2500
|
300/1000
|
80D/160D
|
|
GYXTC8S
|
14-24
|
8.2*15.4
|
129
|
φ1.0mm*7 stranded wire
|
H*W 3.0*2.5 mm
|
600/1500
|
300/1000
|
80D/160D
|
|
Storage/Operating Temperature : -40℃ to + 70℃
|
||||||||
|
|
|||||
|
Optical Characteristics
|
|||||
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
|
Attenuation
(+20℃) |
'@850nm
|
|
|
≤3.0 dB/km
|
≤3.0 dB/km
|
|
'@1300nm
|
|
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|
|
'@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|
|
|
|
'@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|
|
|
|
Bandwidth
(Class A) |
'@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
'@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|
|
|
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
