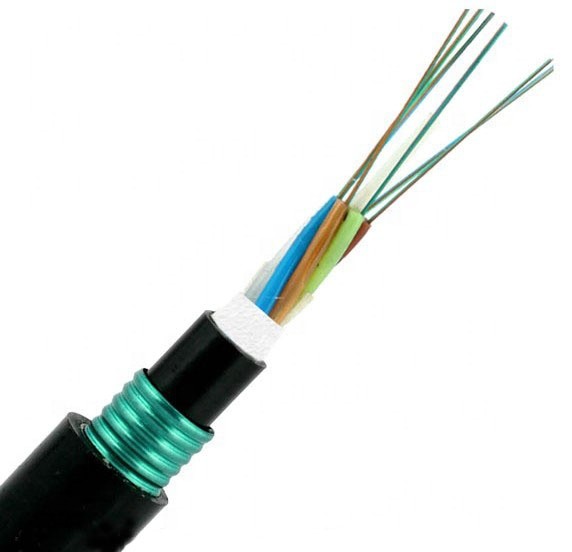

GYFTY53 Aerial/Duct Stranded Loose Tube Armored Outdoor Fiber Optic Cable

1.  Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

2. Features

• Good mechanical and temperature perfomance;
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• The following measures are taken to ensure the cable watertight:

---FRP used as the central strength member

---Loose tube filling compound

---100% cable core filling

---PSP enhancing moisture-proof

 ---Water-blocking material

3.Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

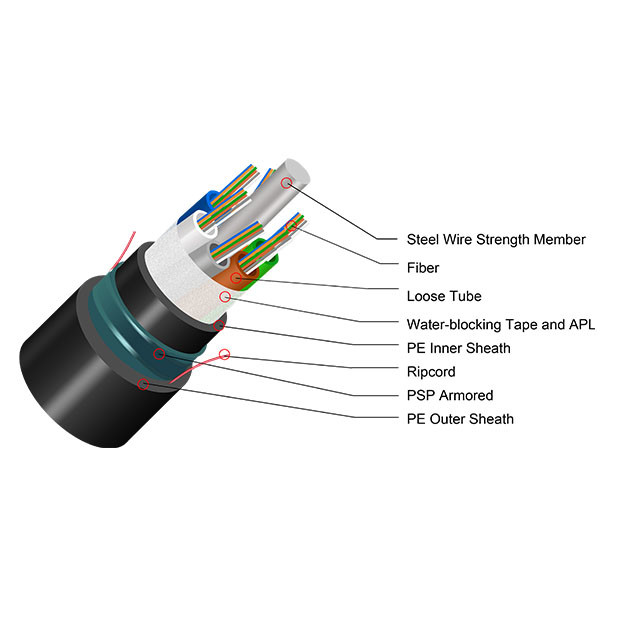

4. Structure and Product Pictures

5. Packing and Shipping

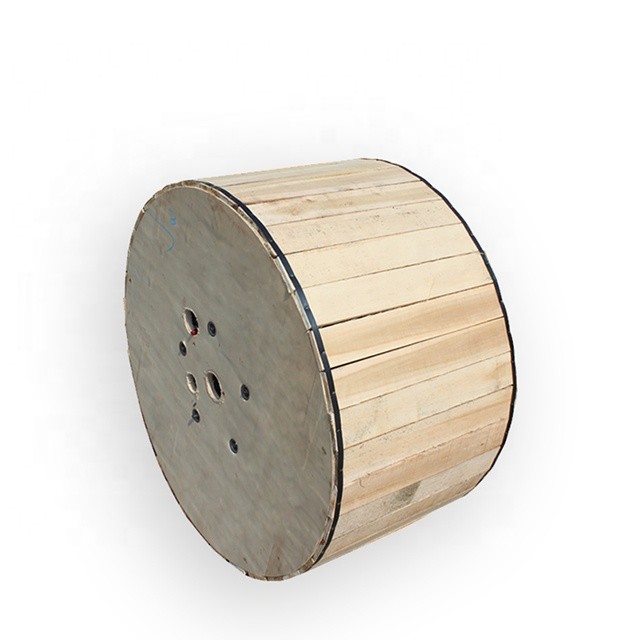

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

6. Our company

7.  FAQ

Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.

Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .

Q3:How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.

Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .

Q5:Do you accept the OEM order and how many is the MOQ?
A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
