Name: GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GYXTW
Price: 0.20 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Application: Telecommunication ,CATV, Net Work

Fiber Count: 2-24 Cores

Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3

Jacket: PE,MDPE

Oem: Available

Installation: Aerial,Aerial & Duct,aerial/tube/duct

Structure: Loose Tube

Strength Member: Two Steel Wire

Highlight:

GYXTW Duct Fiber Optic Cable

YD/T 769-2010 Duct Fiber Optic Cable

GYXTW optical fiber duct cable

Basic Infomation

Place of Origin: China

Brand Name: TW-SCIE / OEM

Certification: IOS9001 , ROHS

Model Number: GYXTW

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 7-15 work days

Payment Terms: T/T, Western Union, D/P, D/A

Supply Ability: 600km/day

Gallery

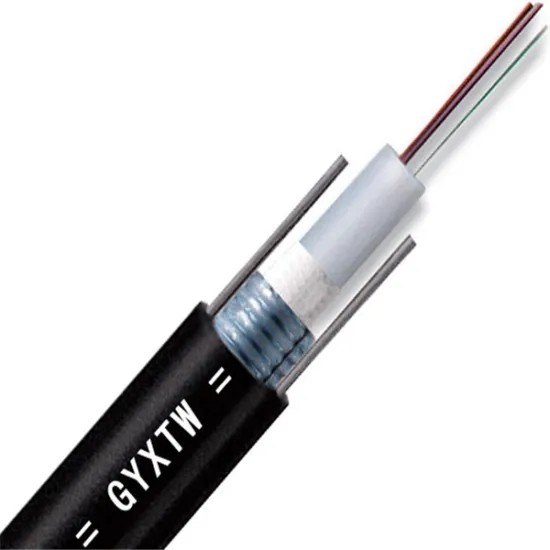

GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010

Product Description

GYXTW Central Tube Type Optic Cable Manufacturer

Description:

1. Single jelly compound filled loose tube containing up to 24 fibers
2. Waterproof tape between the steel tape and loose tube with jelly compound.
3. Double coated PE corrugated steel tape under PE sheath.
4. Parallel double steel wire as strength member.
5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.

General Specifications:

Cable Type	Central Loose Tube fiber optic cable GYXTW
Fiber Type	SM G.652D
Application	Long-distance communication, LAN
Recommended installation methods	Aerial
Environment	Outdoor
Temperature Range	-40ºC to 70ºC

Fiber Specifications:

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber
Characteristics	Conditions	Specified Values	Units
Optical Characteristics
Mode field diameter (MFD)	1310nm 1550nm	9.2±0.4 10.4±0.8	µm µm
Cut-off wavelength (λcc)		≤1260	nm
Attenuation coefficient	1310nm 1383nm 1550nm	<0.35 <0.35 <0.22	dB/km dB/km dB/km
Macro bending loss	φ75mm, 100circles, at 1550nm	≤0.1	dB
Attenuation non-uniformity		≤0.05	dB
Dispersion coefficient	1288~1339nm 1271~1360nm 1550nm	≤3.5 ≤5.3 ≤18	Ps/(nm.km) Ps/(nm.km) Ps/(nm.km)
Zero dispersion wavelength		1300~1324	nm
Max zero dispersion slope		≤0.093	Ps/(nm².km)
Group index of refraction (typical value)	1310nm 1550nm	1.466 1.467
Geometric characteristic
Cladding diameter		125.0±1.0	µm
Core/cladding concentricity error		≤0.8	µm
Cladding non-circularity		≤1.0	%
Coating diameter		245.0±10	µm
Cladding/coating concentricity error		≤12.0	µm
Coating non-circularity		≤8	%
Diameter of colored coating		250.0±15	µm
Mechanical characteristic
Curling (radius)		≥4	m
Proof stress		>0.69	Gpa
Coating strip force	Average value Peak value	1.0-5.0 1.3-8.9	N N
Dynamic stress corrosion susceptibility parameter (n_d value)		≥20

Packing view : 1-4km/roll in wooden drum

GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010 0

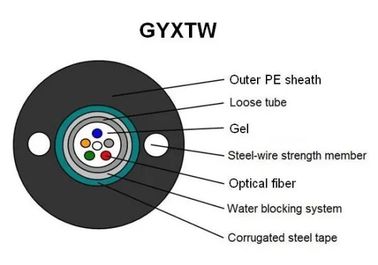

Cable structure:

GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010 1

Company overview :

GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010 2
