GJXH4C/GJXFH4C Fiber To The Home Indoor FTTH Drop Cable

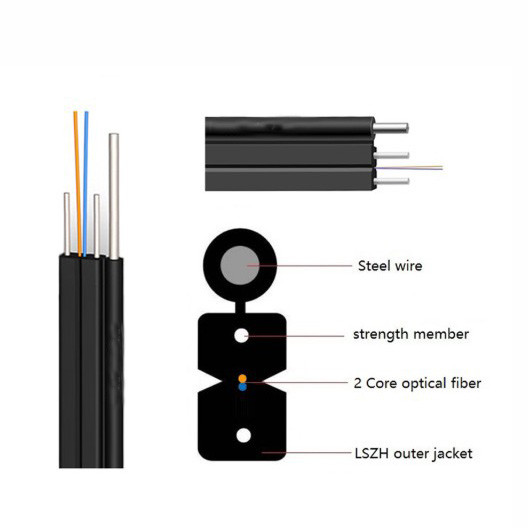

1.The optical fiber unit is positioned in the center.
2.Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
3.Then the cable is completed with a black or white color LSZH sheath.
Features
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber
3.Simple structure, light weight and high practicability
Application
1.Used in indoor cabling, especially used for FTTH
2.Used as access building cable
Specifications
| Model No. |
Count |
Cable Size
(mm)
|
Weight
(kg/km)
|
Tension (N) |
Crush
(N/100mm)
|
Bending Radius Static / dynamic
(mm) |
| GJXH4C |
2-8 |
2.0×6.0 |
18 |
Longterm 100/40 short term 200/80 |
Long term 1000/500 short term 2200/1000 |
20D/40D |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
Optical Fiber Performance
| Type |
Fiber attenuation(+20℃) |
OFL |
Band Width |
10G Ethernet link length |
Minimum bending radius |
| Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
| Typical value |
MAX |
Typical value |
MAX |
| Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
| G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
| G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
| OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
| OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Packing & Shipping
